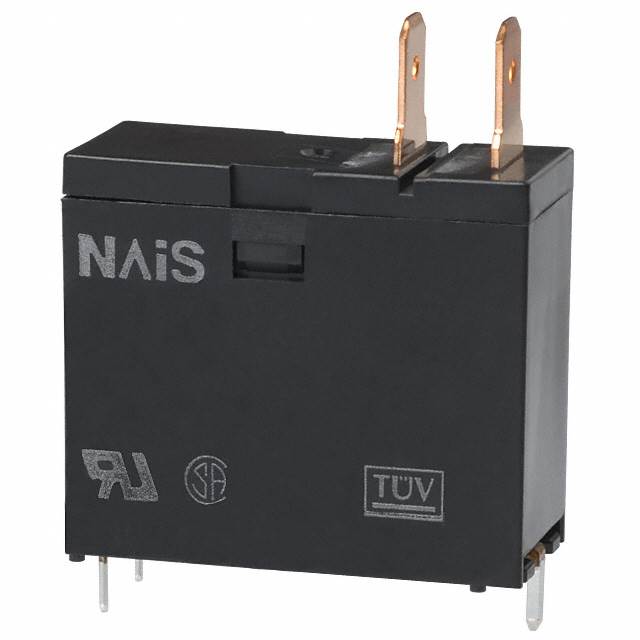

ALE12B09

Part Number
ALE12B09
Manufacturer Panasonic Electric Works
Other Part Numbers
255-5921-ND
ALE12B09-ND
255-5921
Description RELAY GEN PURPOSE SPST 16A 9V
Detailed Description General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
Datasheet Datasheet

Product Attributes

Category
Manufacturer Panasonic Electric Works
Series
ALE
Packaging
Bulk
Part Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Operating Temperature -40°C ~ 85°C
Termination Style PC Pin, Quick Connect - 0.187" (4.7mm)
Approval Agency CSA, TUV, UR, VDE
Relay Type General Purpose
Coil Current 44.4 mA
Coil Type Non Latching
Contact Material Silver Tin Oxide (AgSnO)
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Must Release Voltage 0.45 VDC
Must Operate Voltage 6.75 VDC
Operate Time 20 ms
Release Time 20 ms
Coil Insulation Class B
Load - Max Switching 4432VA

Documents & Media

RESOURCE TYPE LINK
Datasheets Standards Chart

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
