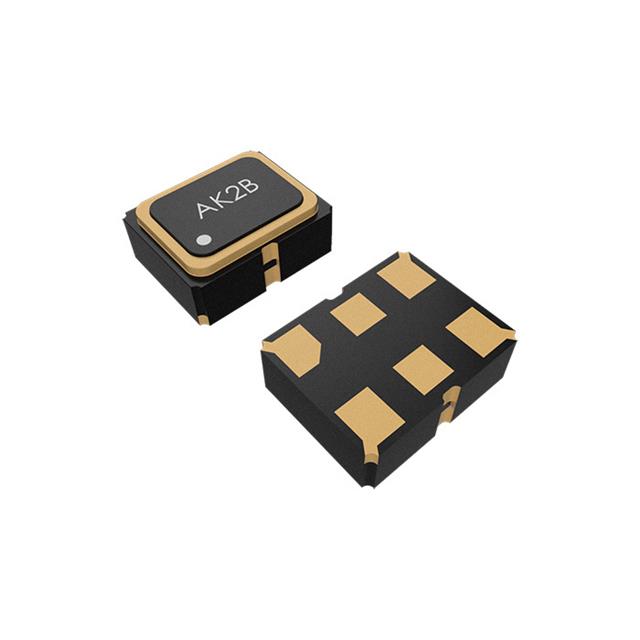

AK2BPDF1-125.0000T

AK2BPDF1-125.0000T

Part Number	AK2BPDF1-125.0000T
Manufacturer	Abracon
Other Part Numbers	535-AK2BPDF1-125.0000TTR-ND 535-AK2BPDF1-125.0000TTR
Description	XTAL OSC XO 125MHZ LVPECL SMD
Detailed Description	125 MHz XO (Standard) LVPECL Oscillator 2.375V ~ 3.63V Standby (Power Down) 6-SMD, No Lead
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		AK2B
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		LVPECL
Function		Standby (Power Down)
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Voltage - Supply		2.375V ~ 3.63V
Current - Supply (Max)		65mA
Current - Supply (Disable) (Max)		30µA
Height - Seated (Max)		0.043" (1.10mm)
Frequency		125 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AK2BPDF1-125.0000T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
