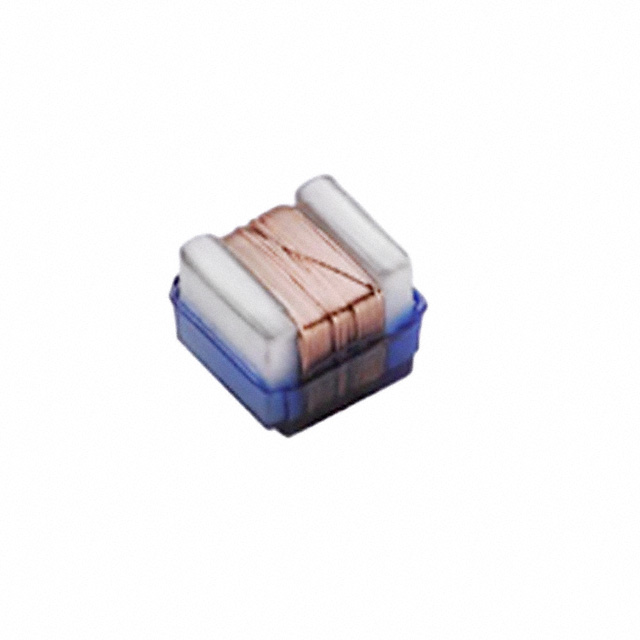

AISC-0402-3N9J-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-0402-3N9J-T
Manufacturer	Abracon
Other Part Numbers	535-10428-2-ND 535-10428-1-ND 535-10428-6-ND 535-10428-1 535-10428-2 535-10428-6 AISC04023N9JT
Description	FIXED IND 3.9NH 840MA 66MOHM SMD
Detailed Description	3.9 nH Unshielded Drum Core, Wirewound Inductor 840 mA 66mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-0402
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.047" L x 0.025" W (1.19mm x 0.64mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		66mOhm Max
Q @ Freq		20 @ 250MHz
Frequency - Self Resonant		6GHz
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402 (1005 Metric)
Height - Seated (Max)		0.026" (0.66mm)
Inductance		3.9 nH
Current Rating (Amps)		840 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
