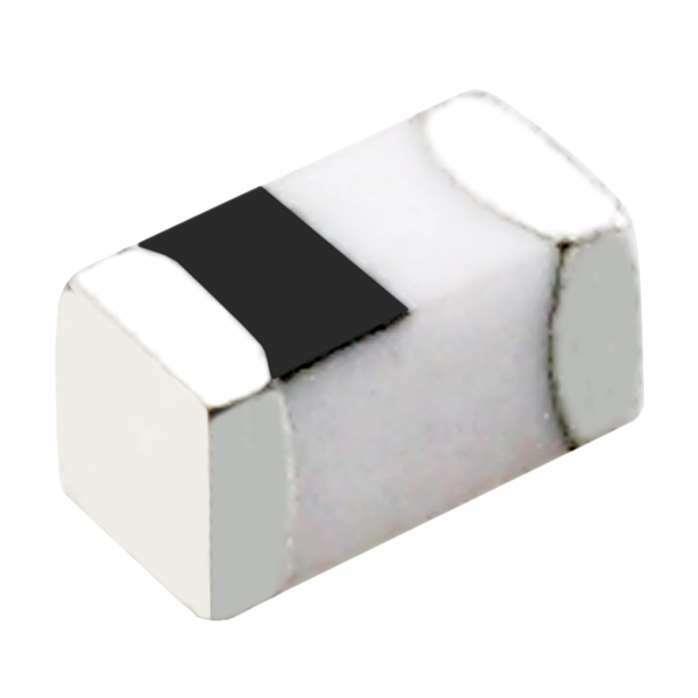

AIMC-Q0201HQ-2N9B-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AIMC-Q0201HQ-2N9B-T
Manufacturer	Abracon
Other Part Numbers	535-AIMC-Q0201HQ-2N9B-TTR-ND 535-AIMC-Q0201HQ-2N9B-TTR
Description	IND 2.9NH 0.5A 200MOHM
Detailed Description	2.9 nH Unshielded Multilayer Inductor 500 mA 200mOhm Max 0201 (0603 Metric)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AIMC-Q0201HQ
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±0.1nH
Package / Case		0201 (0603 Metric)
Size / Dimension		0.024" L x 0.012" W (0.60mm x 0.30mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Multilayer
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		200mOhm Max
Q @ Freq		14 @ 500MHz
Frequency - Self Resonant		9.5GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		500 MHz
Supplier Device Package		0201 (0603 Metric)
Height - Seated (Max)		0.012" (0.30mm)
Inductance		2.9 nH
Current Rating (Amps)		500 mA

RESOURCE TYPE		LINK
Datasheets		AIMC-Q0201HQ-2N9B-T

ATTRIBUTE		DESCRIPTION
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
