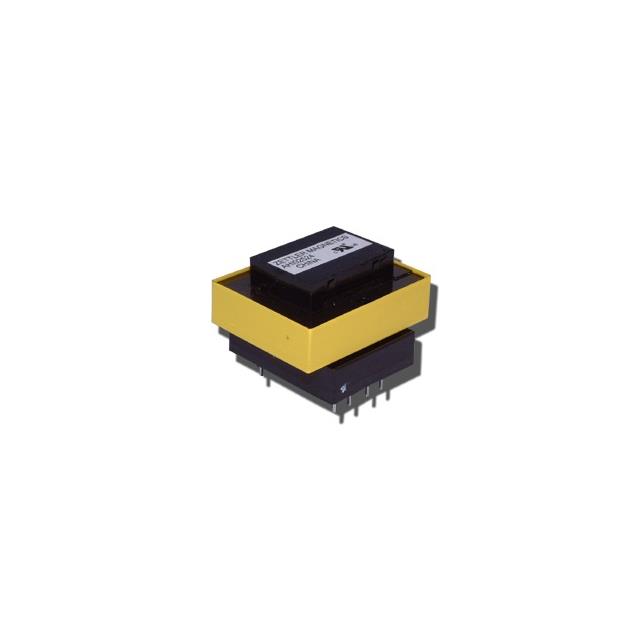

AHI02516

Part Number
AHI02516
Manufacturer Zettler Magnetics
Other Part Numbers
3388-AHI02516-ND
3388-AHI02516
Description PWR XFMR 2.5VA TH
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Zettler Magnetics
Series
AHI025
Packaging
Tray
Part Status Active
Size / Dimension 41.28mm L x 36.45mm W
Mounting Type Through Hole
Termination Style PC Pin
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Dual, Multiple Taps
Power - Max 2.5VA
Voltage - Isolation 4200V
Current - Output (Max) Parallel 300mA, Series 150mA
Voltage - Primary 115V, 230V
Height - Seated (Max) 1.161" (29.50mm)
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Center Tap No

Documents & Media

RESOURCE TYPE LINK
Datasheets AHI02516

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 300

Can ship immediately.
