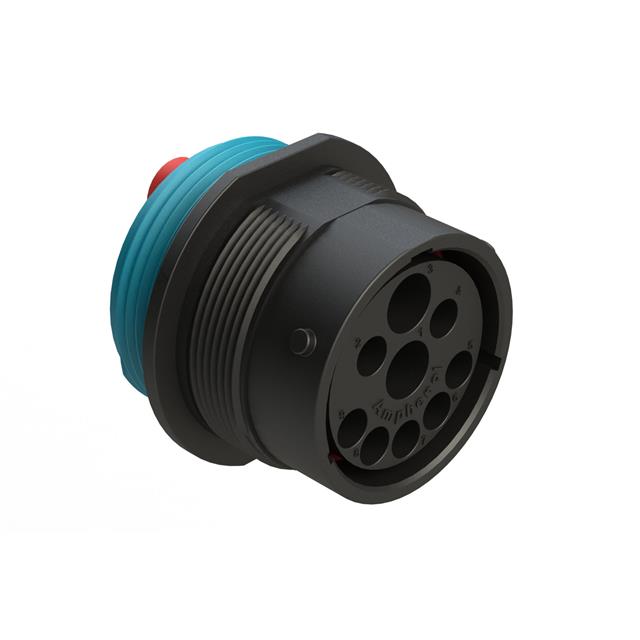

AHDP04-24-91PR16-WTA _ Circular Connector Housings_Circular Connectors_Connectors, Interconnects

Part Number	AHDP04-24-91PR16-WTA
Manufacturer	Tuchel / Amphenol
Other Part Numbers	889-AHDP04-24-91PR16-WTA-ND 889-AHDP04-24-91PR16-WTA
Description	SIZE 24, 9 POSITION ISOBUS RECEP
Detailed Description	9 Position Circular Connector Receptacle Housing Panel Mount
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Housings
Manufacturer		Tuchel / Amphenol
Series		DuraMate™ AHDP ISOBUS 91
Packaging		Box
Part Status		Active
Connector Type		Receptacle Housing
Mounting Type		Panel Mount
Shielding		Unshielded
Number of Positions		9
Type		For Male Pins
Orientation		Keyed
Shell Size - Insert		24-91
Operating Temperature		-55°C ~ 125°C
Contact Type		Crimp
Fastening Type		Bayonet Lock
Ingress Protection		IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Contact Size		8 (2), 12 (2), 16 (5)
Mounting Feature		Bulkhead - Front Side Nut
Note		Contacts Not Included; Jam Nut Not Included
Housing Color		Black
Contact Shape		Circular
Shell Material		Thermoplastic
Insert Material		Thermoplastic
Primary Material		Plastic

RESOURCE TYPE		LINK
Datasheets		AHDP04-24-91PR16-WTA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
