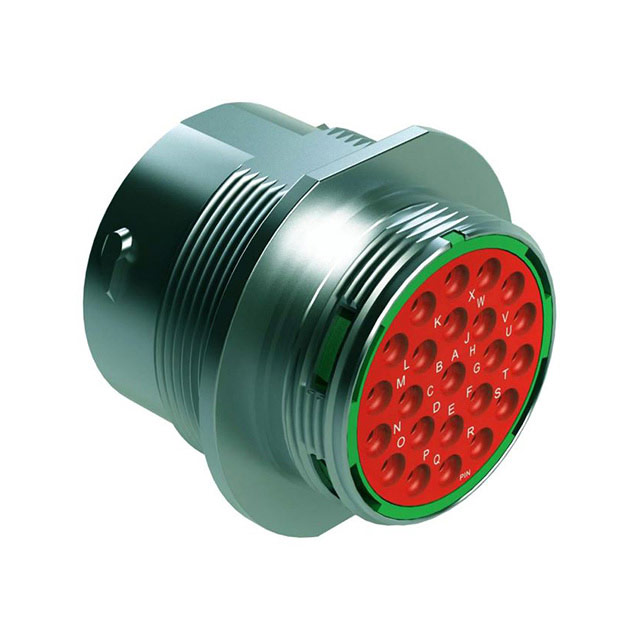

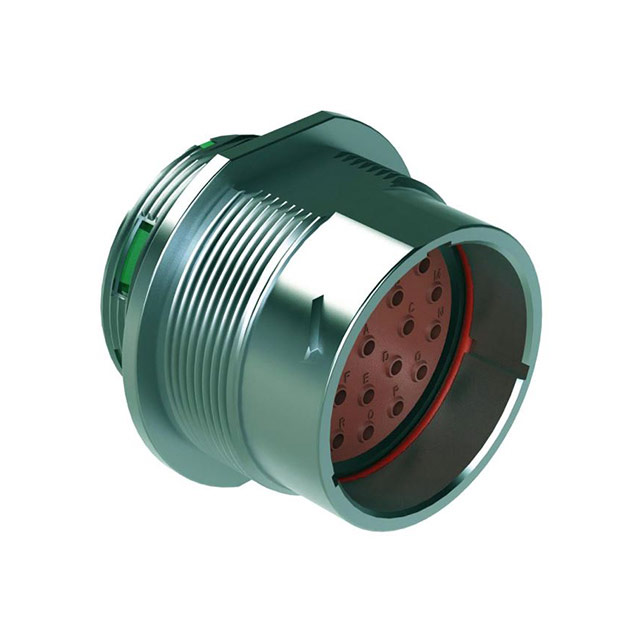

AHDM04-24-23PN _ Circular Connector Housings_Circular Connectors_Connectors, Interconnects

Part Number	AHDM04-24-23PN
Manufacturer	Tuchel / Amphenol
Other Part Numbers	889-3023-ND 2266-AHDM04-24-23PN 889-3023
Description	CONN RCPT HSNG MALE 23POS PNL MT
Detailed Description	23 Position Circular Connector Receptacle Housing Panel Mount
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Housings
Manufacturer		Tuchel / Amphenol
Series		DuraMate™ AHDM
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle Housing
Mounting Type		Panel Mount
Shielding		Unshielded
Number of Positions		23
Type		For Male Pins
Orientation		Keyed
Shell Size - Insert		24-23
Operating Temperature		-55°C ~ 125°C
Contact Type		Crimp
Fastening Type		Bayonet Lock
Ingress Protection		IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Contact Size		16
Mounting Feature		Bulkhead - Front Side Nut
Note		Contacts Not Included; Jam Nut Not Included
Housing Color		Silver
Contact Shape		Circular
Shell Material		Zinc Alloy
Shell Finish		Nickel
Insert Material		Thermoplastic

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
