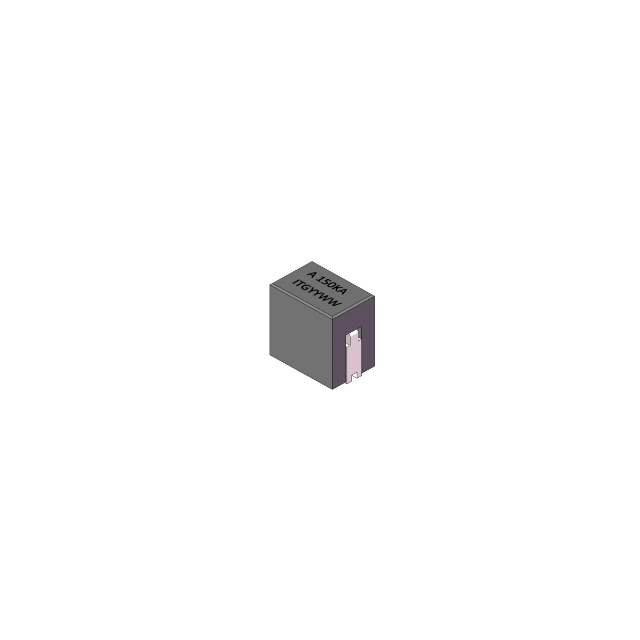

AH3740A-180K

Part Number
AH3740A-180K
Manufacturer ITG Electronics, Inc.
Other Part Numbers
3013-AH3740A-180KTR-ND
3013-AH3740A-180KTR
Description FIXED IND 180NH 78A 0.145MOHM SM
Detailed Description 180 nH Shielded Inductor 78 A 0.145mOhm Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer ITG Electronics, Inc.
Series
AH3740
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.378" L x 0.252" W (9.60mm x 6.40mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -55°C ~ 130°C
DC Resistance (DCR) 0.145mOhm
Current - Saturation (Isat) 49A
Material - Core Ferrite
Inductance Frequency - Test 500 kHz
Height - Seated (Max) 0.394" (10.00mm)
Inductance 180 nH
Current Rating (Amps) 78 A

Documents & Media

RESOURCE TYPE LINK
Datasheets AH3740A-180K

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
