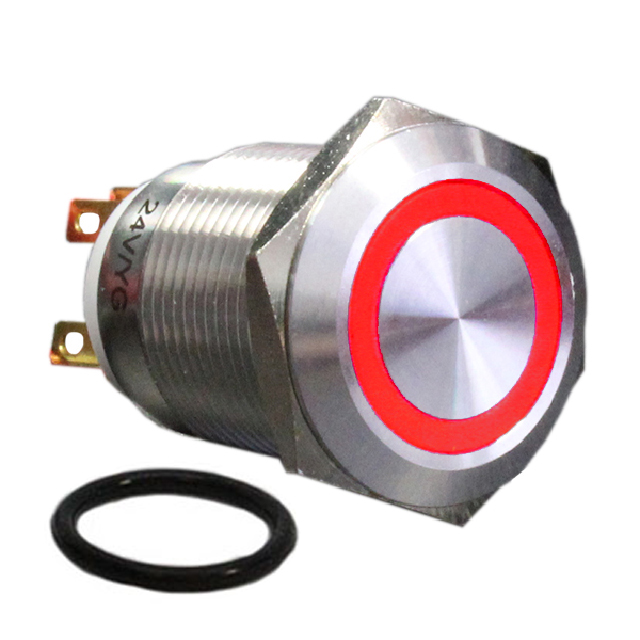

AH1NBSRG12 _ Pushbutton Switches_Switches

Part Number	AH1NBSRG12
Manufacturer	CIT Relay and Switch
Other Part Numbers	2449-AH1NBSRG12-ND 2449-AH1NBSRG12
Description	SWITCH PB DPST-NO/NC 1A 125V
Detailed Description	Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		CIT Relay and Switch
Series		AH
Packaging		Tray
Part Status		Active
Features		Stainless Steel 316
Current Rating (Amps)		1A (AC/DC)
Mounting Type		Panel Mount, Front
Circuit		DPST-NO/NC
Type		Anti-Vandal, Illuminated
Switch Function		On-Mom, Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Green/Red
Illumination Voltage (Nominal)		12 VDC
Actuator Type		Round, Button, Flush
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 19.00mm Dia
Color - Actuator/Cap		Silver
Voltage Rating - AC		125 V
Voltage Rating - DC		24 V

RESOURCE TYPE		LINK
Datasheets		AH1NBSRG12

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
