AFB1212GHE-CF00

Part Number
AFB1212GHE-CF00
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-1325-ND
603-1325
AFB1212GHECF00

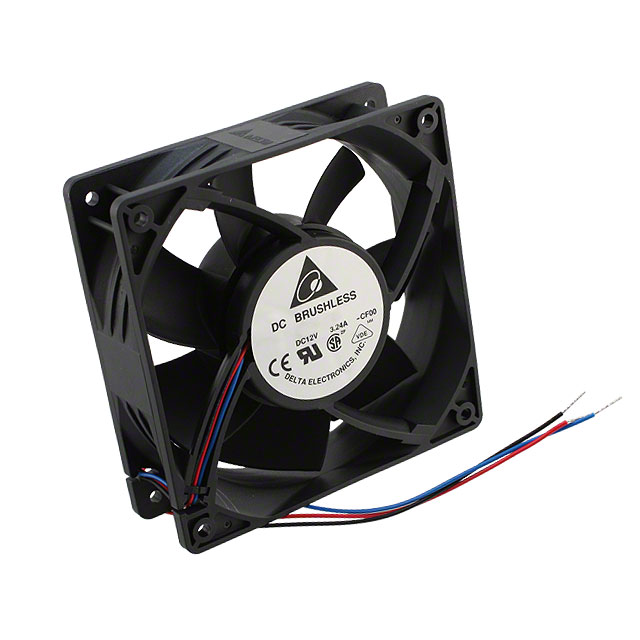

Description FAN AXIAL 120X38MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 241.0 CFM (6.75m³/min) 3 Wire Leads
Datasheet Datasheet

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
AFB
Packaging
Bulk
Part Status Obsolete
Features Locked Rotor Protection, Speed Sensor (Tach)
Voltage - Rated 12VDC
Size / Dimension Square - 120mm L x 120mm H
Bearing Type Ball
RPM 5200 RPM
Air Flow 241.0 CFM (6.75m³/min)
Width 38.00mm
Weight 0.728 lb (330.22 g)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Termination 3 Wire Leads
Approval Agency CE, CSA, UL, VDE
Fan Type Tubeaxial
Noise 62.0dB(A)
Static Pressure 1.082 in H2O (269.5 Pa)
Power (Watts) 29.4 W

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
