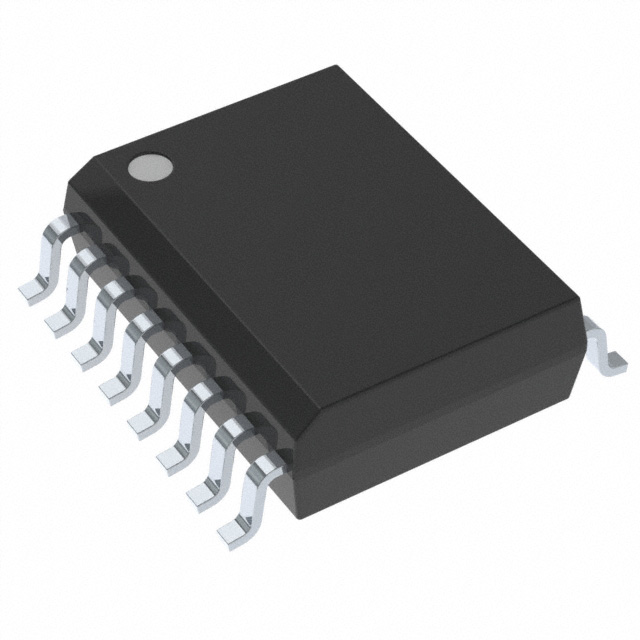

ADUM1401ARWZ _ Digital Isolators_Isolators

Part Number	ADUM1401ARWZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-ADUM1401ARWZ-ND 2156-ADUM1401ARWZ ADUM1401ARWZ-ND 505-ADUM1401ARWZ -2735-ADUM1401ARWZ ANAANAADUM1401ARWZ
Description	DGTL ISO 2500VRMS 4CH GP 16SOIC
Detailed Description	General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series		iCoupler®
Packaging		Tube
Part Status		Active
Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Type		General Purpose
Operating Temperature		-40°C ~ 105°C
Voltage - Supply		2.7V ~ 5.5V
Data Rate		1Mbps
Technology		Magnetic Coupling
Voltage - Isolation		2500Vrms
Inputs - Side 1/Side 2		3/1
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		2.5ns, 2.5ns
Common Mode Transient Immunity (Min)		25kV/µs
Propagation Delay tpLH / tpHL (Max)		100ns, 100ns
Isolated Power		No
Channel Type		Unidirectional
Pulse Width Distortion (Max)		40ns
Number of Channels		4

RESOURCE TYPE		LINK
Datasheets		ADUM1401ARWZ
Datasheets		ADI Programmable Log Controller Solutions
Datasheets		16-Bit Fully Isolated 4 mA to 20 mA Output Module Using AD5662, ADuM1401, and External Amplifiers (CN0064)
Datasheets		16-Bit Fully Isolated Voltage Output Module Using AD5662, ADuM1401, and External Amplifiers (CN0063)
Datasheets		16-Bit Fully Isolated Output Module Using AD5422 and ADuM1401 (CN0065)
Datasheets		Datasheet Update 18/Apr/2014
Datasheets		ADUM 15/FEB/2022

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
