ADG508AKN _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	ADG508AKN
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	ADG508AKN-ND ANAANAADG508AKN 2156-ADG508AKN-AD
Description	IC MUX 8:1 300OHM 16DIP
Detailed Description	1 Circuit IC Switch 8:1 300Ohm 16-PDIP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Obsolete

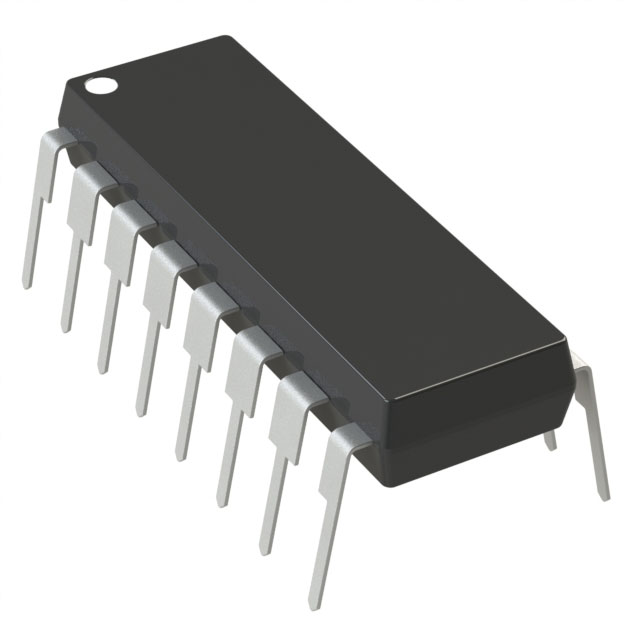

Package / Case		16-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		300Ohm
Supplier Device Package		16-PDIP
Voltage - Supply, Single (V+)		10.8V ~ 16.5V
Voltage - Supply, Dual (V±)		±10.8V ~ 16.5V
Charge Injection		4pC
Multiplexer/Demultiplexer Circuit		8:1
Channel-to-Channel Matching (ΔRon)		15Ohm
Switch Time (Ton, Toff) (Max)		300ns, 300ns
Channel Capacitance (CS(off), CD(off))		5pF, 22pF
Current - Leakage (IS(off)) (Max)		1nA
Number of Circuits		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
