ADG408BR _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	ADG408BR
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	ADG408BR-ND ANAANAADG408BR 2156-ADG408BR-AD
Description	IC MUX 8:1 100OHM 16SOIC
Detailed Description	1 Circuit IC Switch 8:1 100Ohm 16-SOIC
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Obsolete

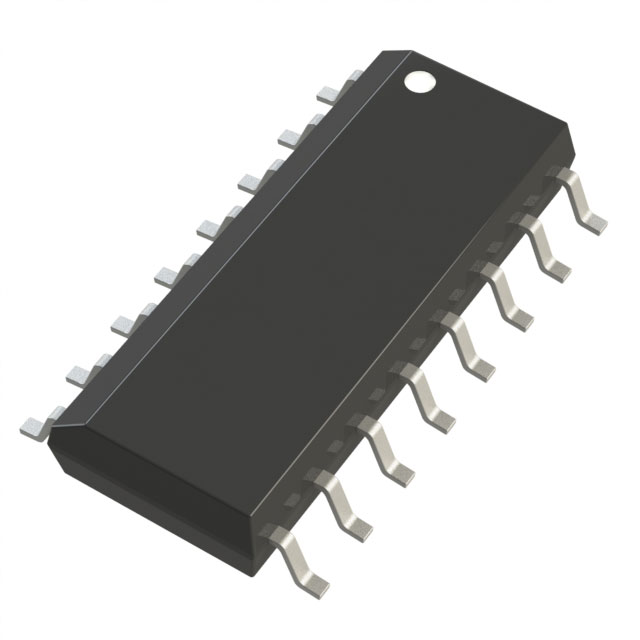

Package / Case		16-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		100Ohm
Supplier Device Package		16-SOIC
Voltage - Supply, Single (V+)		12V
Voltage - Supply, Dual (V±)		±15V
Charge Injection		20pC
Crosstalk		-85dB @ 100kHz
Multiplexer/Demultiplexer Circuit		8:1
Channel-to-Channel Matching (ΔRon)		15Ohm (Max)
Channel Capacitance (CS(off), CD(off))		11pF, 40pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
