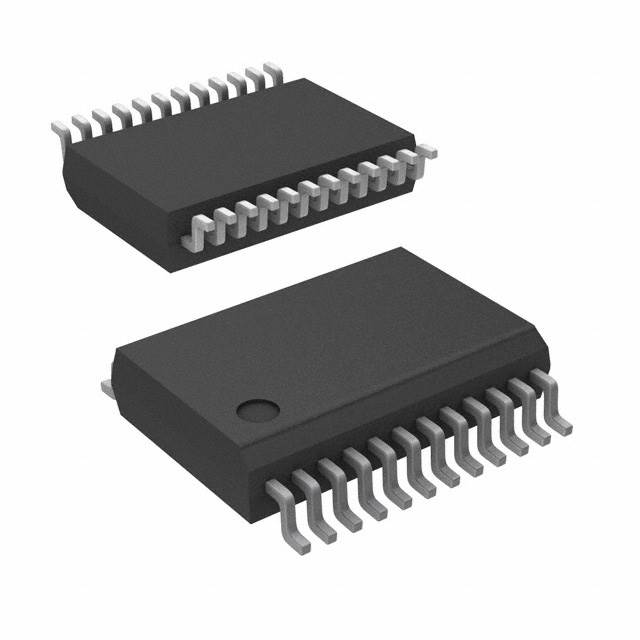

ADE7751ARSZ

ADE7751ARSZ

Part Number	ADE7751ARSZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-ADE7751ARSZ-ND ADE7751ARSZ-ND ANAANAADE7751ARSZ -2735-ADE7751ARSZ 2156-ADE7751ARSZ 505-ADE7751ARSZ
Description	IC ENERGY METERING 1PHASE 24SSOP
Detailed Description	Single Phase Meter IC 24-SSOP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Energy Metering
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		24-SSOP (0.209", 5.30mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Current - Supply		3mA
Measurement Error		0.1%
Input Impedance		390kOhm
Voltage - I/O High		2.4V, 4V, 4.5V
Voltage - I/O Low		0.5V, 0.8V
Meter Type		Single Phase
Supplier Device Package		24-SSOP
Voltage - Supply		4.75 V ~ 5.25 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ADE7751ARSZ

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 167

Can ship immediately.
