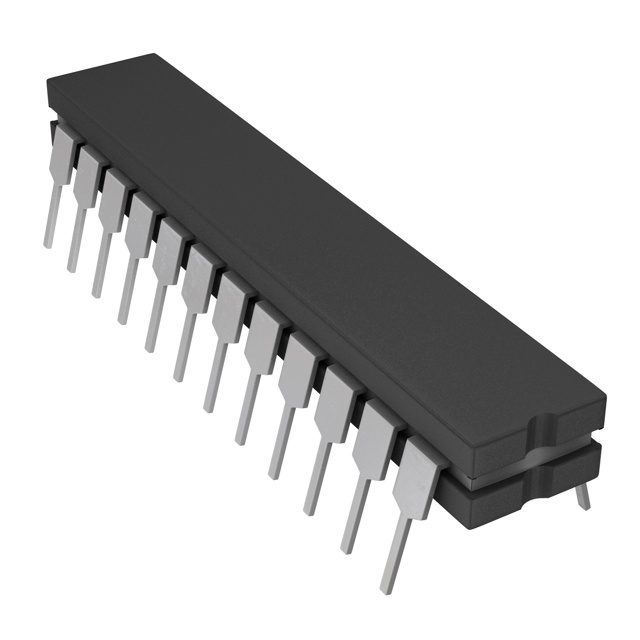

AD7845SQ _ Digital to Analog Converters (DAC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	AD7845SQ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-AD7845SQ-ND 2156-AD7845SQ AD7845SQ-ND 505-AD7845SQ ANAANAAD7845SQ -2735-AD7845SQ
Description	IC DAC 12BIT V-OUT 24CDIP
Detailed Description	12 Bit Digital to Analog Converter 1 24-CDIP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		24-CDIP (0.300", 7.62mm)
Output Type		Voltage - Buffered
Mounting Type		Through Hole
Number of Bits		12
Data Interface		Parallel
Reference Type		External
Operating Temperature		-55°C ~ 125°C
Voltage - Supply, Analog		±14.25V ~ 15.75V
Settling Time		5µs
Supplier Device Package		24-CDIP
Architecture		R-2R
Number of D/A Converters		1
INL/DNL (LSB)		±1 (Max), ±1 (Max)
Differential Output		No
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		AD7845SQ

ATTRIBUTE		DESCRIPTION
ECCN		3A001A2C
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
