AD7829BRZ-REEL _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	AD7829BRZ-REEL
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	AD7829BRZ-REELTR-ND AD7829BRZ-REELTR AD7829BRZ-REEL-ND ANAANAAD7829BRZ-REEL AD7829BRZ-REELDKR 2156-AD7829BRZ-REEL AD7829BRZ-REELCT
Description	IC ADC 8BIT PIPELINED 28SOIC
Detailed Description	8 Bit Analog to Digital Converter 8 Input 1 Pipelined 28-SOIC
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

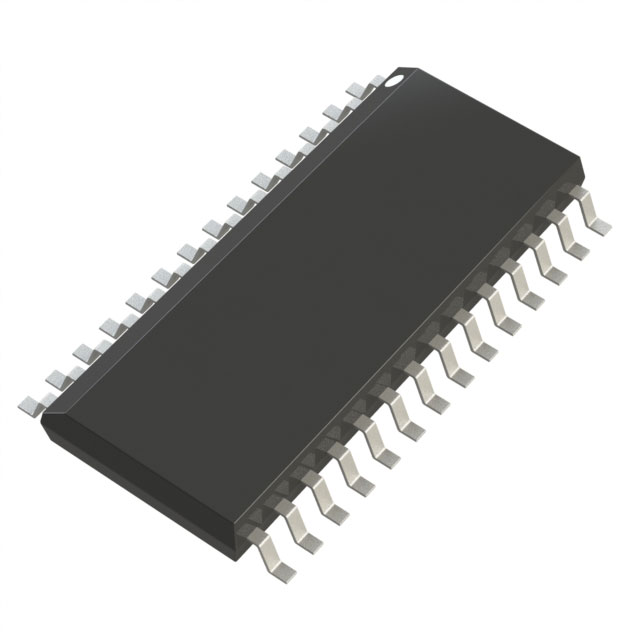

Package / Case		28-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Number of Bits		8
Configuration		MUX-S/H-ADC
Data Interface		Parallel
Reference Type		External, Internal
Operating Temperature		-40°C ~ 85°C
Voltage - Supply, Analog		2.7V ~ 3.3V, 5V
Voltage - Supply, Digital		2.7V ~ 3.3V, 5V
Sampling Rate (Per Second)		2M
Input Type		Single Ended
Number of Inputs		8
Supplier Device Package		28-SOIC
Architecture		Pipelined
Ratio - S/H:ADC		1:1
Number of A/D Converters		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
