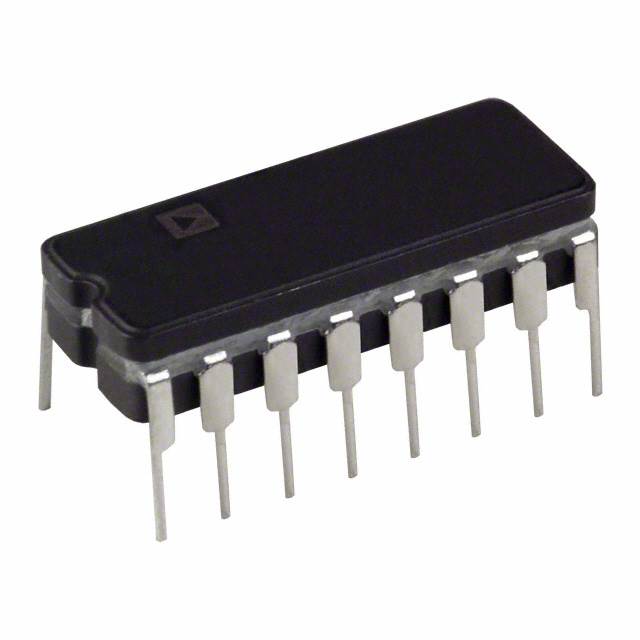

AD7542GBQ _ Digital to Analog Converters (DAC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	AD7542GBQ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	AD7542GBQ-ND 2156-AD7542GBQ ANAANAAD7542GBQ
Description	IC DAC 12BIT A-OUT 16CDIP
Detailed Description	12 Bit Digital to Analog Converter 1 16-CERDIP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		16-CDIP (0.300", 7.62mm)
Output Type		Current - Unbuffered
Mounting Type		Through Hole
Number of Bits		12
Data Interface		Parallel
Reference Type		External
Operating Temperature		-40°C ~ 85°C
Voltage - Supply, Analog		5V
Voltage - Supply, Digital		5V
Settling Time		2µs
Supplier Device Package		16-CERDIP
Architecture		R-2R
Number of D/A Converters		1
INL/DNL (LSB)		±0.5 (Max), ±1 (Max)
Differential Output		Yes
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		AD7542GBQ

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
