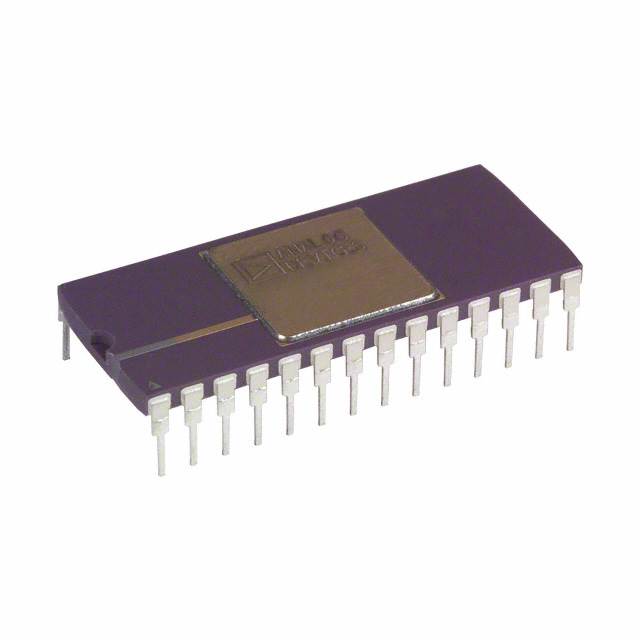

AD574ASD

AD574ASD

Part Number	AD574ASD
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	AD574ASD-ND -2735-AD574ASD 2156-AD574ASD ANAANAAD574ASD
Description	IC ADC 12BIT SAR 28CDIP
Detailed Description	12 Bit Analog to Digital Converter 1 Input 1 SAR 28-CDIP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active
Package / Case		28-CDIP (0.600", 15.24mm)
Mounting Type		Through Hole
Number of Bits		12
Configuration		ADC
Data Interface		Parallel
Reference Type		External, Internal
Operating Temperature		-55°C ~ 125°C
Voltage - Supply, Analog		±11.4V ~ 16.5V
Voltage - Supply, Digital		5V
Input Type		Single Ended
Number of Inputs		1
Supplier Device Package		28-CDIP
Architecture		SAR
Number of A/D Converters		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AD574ASD

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		3A001A2C
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2

Can ship immediately.
