AD5542JR-REEL7 _ Digital to Analog Converters (DAC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	AD5542JR-REEL7
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	AD5542JR-REEL7-ND 2156-AD5542JR-REEL7-ADTR-ND ANAANAAD5542JR-REEL7 2156-AD5542JR-REEL7
Description	IC DAC 16BIT V-OUT 14SOIC
Detailed Description	16 Bit Digital to Analog Converter 1 14-SOIC
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

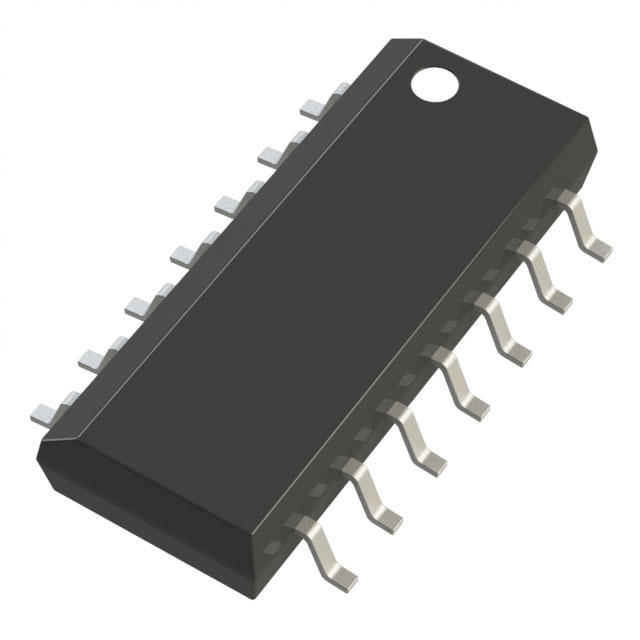

Package / Case		14-SOIC (0.154", 3.90mm Width)
Output Type		Voltage - Unbuffered
Mounting Type		Surface Mount
Number of Bits		16
Data Interface		SPI, DSP
Reference Type		External
Operating Temperature		0°C ~ 70°C
Voltage - Supply, Analog		2.7V ~ 5.5V
Voltage - Supply, Digital		2.7V ~ 5.5V
Settling Time		1µs (Typ)
Supplier Device Package		14-SOIC
Architecture		R-2R
Number of D/A Converters		1
INL/DNL (LSB)		±0.5, ±0.5
Differential Output		No
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		AD5542JR-REEL7
Datasheets		Tape and Reel Packaging
Datasheets		High Precision Digital-to-Analog Conversion Using the 16-Bit AD5542/1, ADR421, and AD8628 (CN0079)
Datasheets		How to Achieve High Precision Voltage Level Setting Using AD5541A/42A (CN0169)
Datasheets		Multiple Devices Family 27/Oct/2011

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
