Part Number |
AD005-00
|
---|---|
Manufacturer | NVE Corp/Sensor Products |
Other Part Numbers |
391-1006-ND
391-1006
|
Description | MAGNETIC SWITCH OMNIPOLAR 8MSOP |
Detailed Description | Digital Switch Omnipolar Switch Open Collector Hall Effect 8-MSOP |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | NVE Corp/Sensor Products | |
Series |
AD
|
|
Packaging |
Tube
|
|
Part Status | Obsolete | |

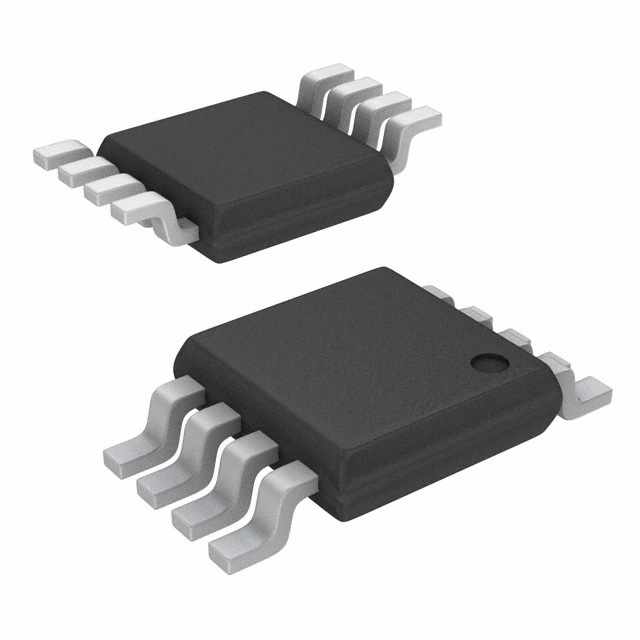

Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | |
Output Type | Open Collector | |
Polarization | North Pole, South Pole | |
Mounting Type | Surface Mount | |
Function | Omnipolar Switch | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Voltage - Supply | 4.5V ~ 30V | |
Technology | Hall Effect | |
Sensing Range | ±5mT Trip, ±2.5mT Release | |
Current - Output (Max) | 20mA | |
Current - Supply (Max) | 4.5mA | |
Supplier Device Package | 8-MSOP | |
Test Condition | -40°C ~ 125°C |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | AD005-00 | |
Datasheets | Package Drawings, Spec Appendix |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
