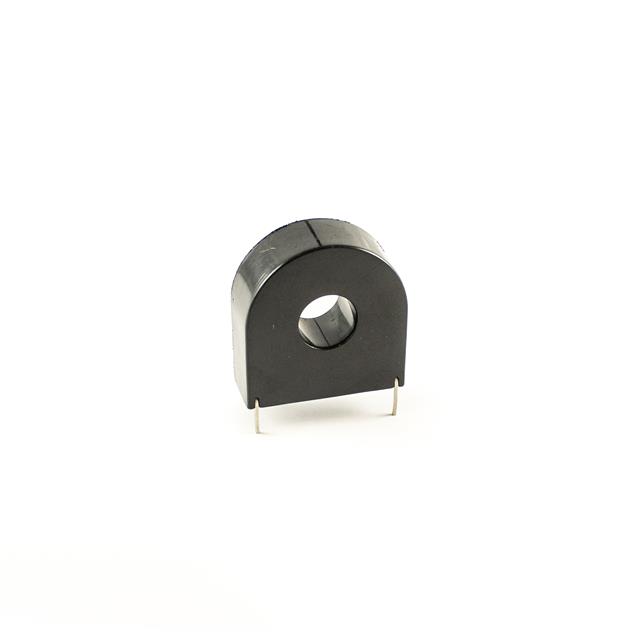

ACT13-100-040-01-100

ACT13-100-040-01-100

Part Number	ACT13-100-040-01-100
Manufacturer	Allied Components International
Other Part Numbers	3475-ACT13-100-040-01-100-ND 3475-ACT13-100-040-01-100
Description	CURR SENSE XFMR 1:2500 100A TH
Detailed Description	100 A 1:2500 Current Sense Transformer 50Hz ~ 400Hz Through Hole
Datasheet	Datasheet

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		Allied Components International
Series
Packaging		Box
Part Status		Active
Size / Dimension		1.476" L x 0.551" W (37.50mm x 14.00mm)
Mounting Type		Through Hole
Type		Non-Invasive (Solid Core)
Termination Style		PC Pin
Turns Ratio - Primary:Secondary		1:2500
Frequency Range		50Hz ~ 400Hz
Height - Seated (Max)		1.535" (39.00mm)
Current Rating (Amps)		100 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ACT13-100-040-01-100

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
