ACS722LLCTR-10AU-T _ Current Sensors_Sensors, Transducers

Part Number	ACS722LLCTR-10AU-T
Manufacturer	Allegro MicroSystems
Other Part Numbers	620-1636-2-ND 620-1636-1-ND 620-1636-6-ND 620-1636-6 ACS722LLCTR-10AU-T-ND Q10645641 620-1636-2 620-1636-1
Description	SENSOR CURRENT HALL 10A DC

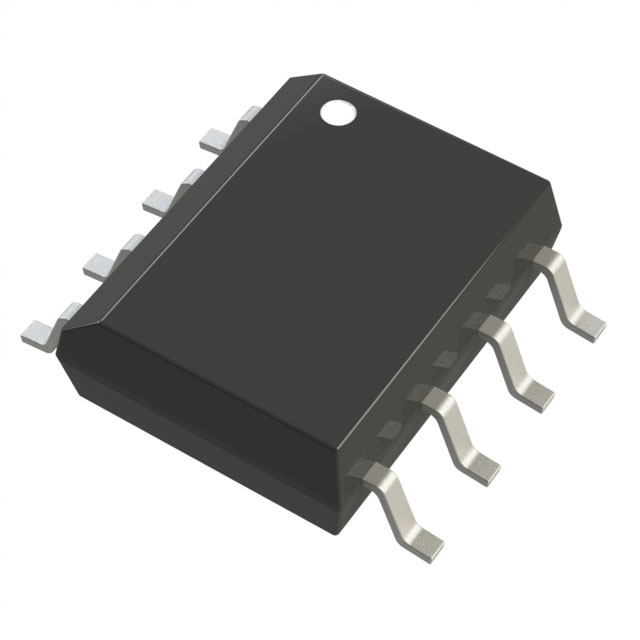

Detailed Description	Current Sensor 10A 1 Channel Hall Effect, Open Loop Unidirectional 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	20 weeks

Category		Sensors, Transducers Current Sensors
Manufacturer		Allegro MicroSystems
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Polarization		Unidirectional
Sensitivity		264mV/A
Mounting Type		Surface Mount
Output		Ratiometric, Voltage
Frequency		DC ~ 80kHz
Accuracy		±3%
Operating Temperature		-40°C ~ 150°C
Voltage - Supply		3V ~ 3.6V
Response Time		5µs
Sensor Type		Hall Effect, Open Loop
Linearity		±1%
For Measuring		DC
Current - Supply (Max)		12mA
Current - Sensing		10A
Supplier Device Package		8-SOIC
Number of Channels		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
