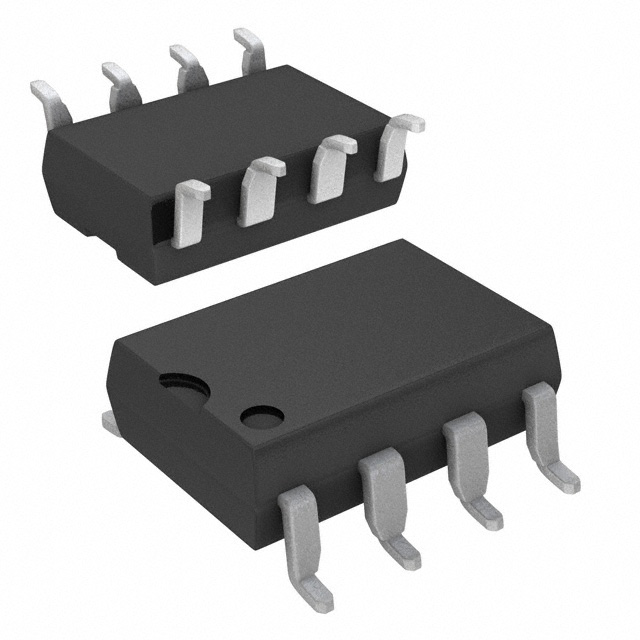

ACPL-827-30CE _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ACPL-827-30CE
Manufacturer	Broadcom
Other Part Numbers	ACPL-827-30CE-ND
Description	OPTOISOLATOR 5KV 2CH TRANS 8SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 2 Channel 8-SMD
Manufacturer Standard Lead Time	20 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		8-SMD
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		2
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
