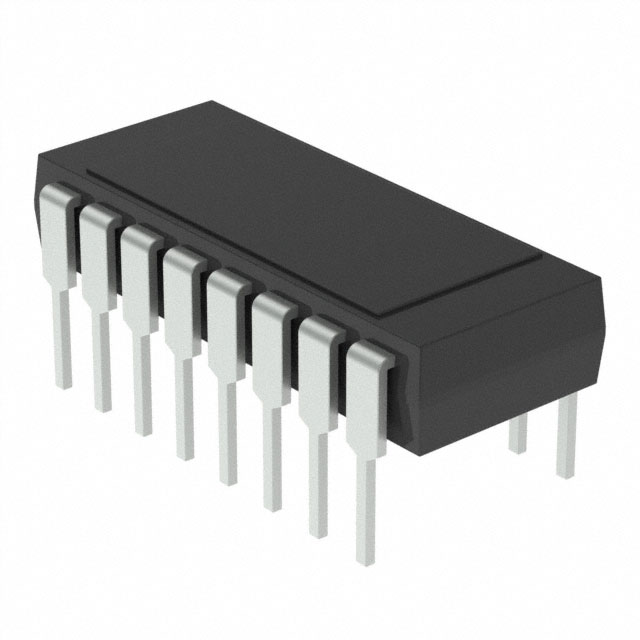

ACPL-177KL

ACPL-177KL

Part Number	ACPL-177KL
Manufacturer	Broadcom
Other Part Numbers	ACPL-177KL-ND
Description	OPTOISO 1.5KV 4CH DARLNG 16-CDIP
Detailed Description	Optoisolator Darlington Output 1500VDC 4 Channel 16-CDIP
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		16-CDIP (0.300", 7.62mm)
Output Type		Darlington
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.4V
Input Type		DC
Current - Output / Channel		40mA
Voltage - Isolation		1500VDC
Current Transfer Ratio (Min)		200% @ 5mA
Supplier Device Package		16-CDIP
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		2µs, 6µs
Number of Channels		4
Current - DC Forward (If) (Max)		10 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
