ACE8001MT8X _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	ACE8001MT8X
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-ACE8001MT8X-ND 2156-ACE8001MT8X FAIFSCACE8001MT8X
Description	8-BIT, EEPROM, ACE1001 CPU, 1MHZ
Detailed Description	ACE8001 - Microcontroller IC 8-Bit 4MHz 1KB (1K x 8) EEPROM 8-TSSOP

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active

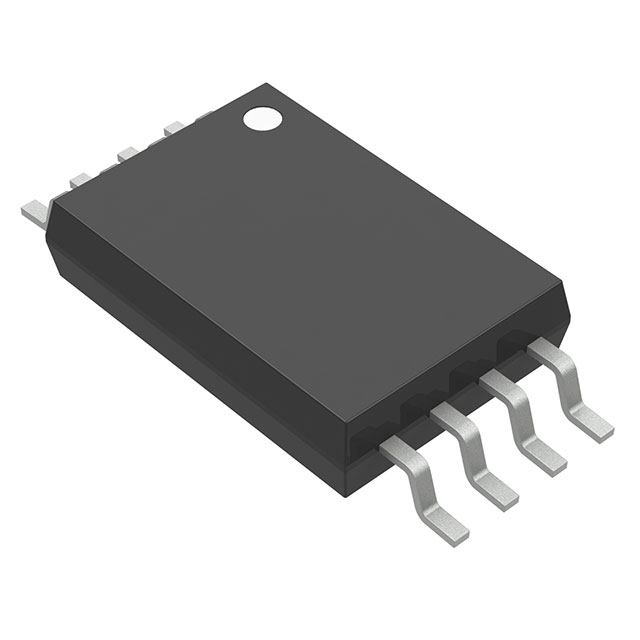

Package / Case		8-TSSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Speed		4MHz
Program Memory Size		1KB (1K x 8)
RAM Size		64 x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		External, Internal
Program Memory Type		EEPROM
EEPROM Size		64 x 8
Core Processor		ACE8001
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.2V ~ 5.5V
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		8-TSSOP
Number of I/O		6
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
