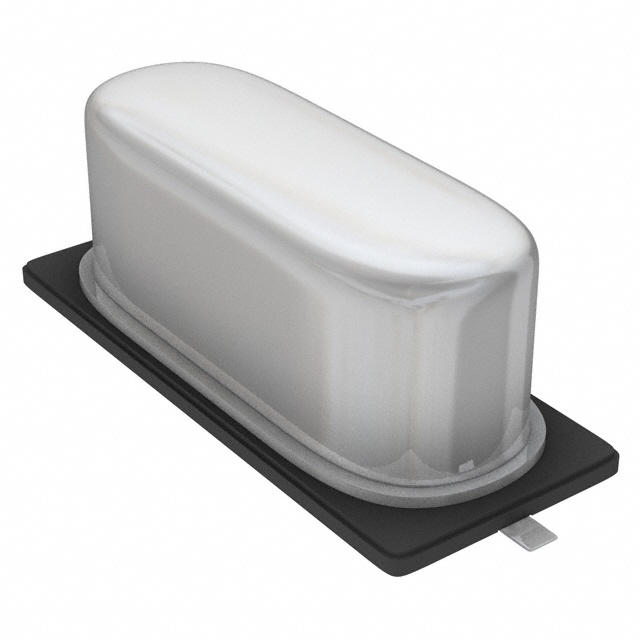

ABLS-24.576MHZ-B2F-T

ABLS-24.576MHZ-B2F-T

Part Number
ABLS-24.576MHZ-B2F-T
Manufacturer Abracon
Other Part Numbers
535-9077-2-ND
535-9077-1-ND
535-9077-6-ND
2266-ABLS-24.576MHZ-B2F-TTR
300-9077-1-ND
300-9077-2-ND
Q5741112EG
ABLS24576MHZB2FT
535-9077-6
300-9077-1
535-9077-2
535-9077-1
300-9077-2
Description CRYSTAL 24.5760MHZ 18PF SMD
Detailed Description 24.576 MHz ±20ppm Crystal 18pF 40 Ohms HC-49/US
Manufacturer Standard Lead Time 21 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
ABLS
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case HC-49/US
Load Capacitance 18pF
Size / Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Mounting Type Surface Mount
Type MHz Crystal
Operating Temperature -20°C ~ 70°C
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Operating Mode Fundamental
Height - Seated (Max) 0.165" (4.20mm)
ESR (Equivalent Series Resistance) 40 Ohms
Frequency 24.576 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets ABLS-24.576MHZ-B2F-T
Datasheets Abracon REACH
Datasheets ABLS.pdf
Datasheets ABLS Series Top
Datasheets ABLS Series Footprint
Datasheets ABLS Series SMD Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0060
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
RoHS Status ROHS3 Compliant

In Stock: 51

Can ship immediately.
