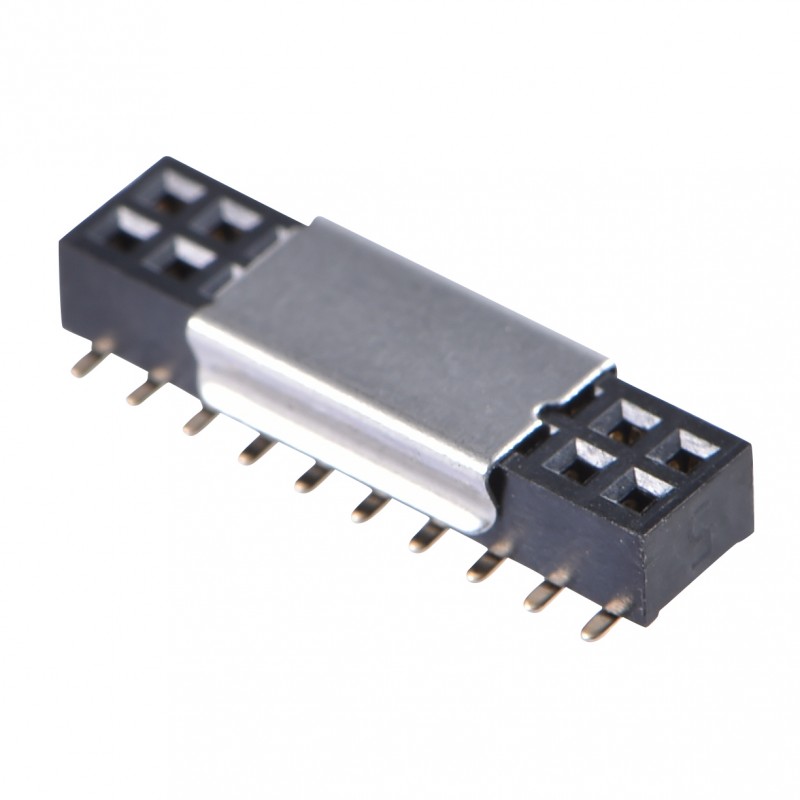

ABL-127-30-SR14 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	ABL-127-30-SR14
Manufacturer	ASSMANN WSW Components
Other Part Numbers	123-ABL-127-30-SR14TR-ND 123-ABL-127-30-SR14TR
Description	PIN- & FEMALE HEADER FEMALE SMT
Detailed Description	30 Position Header Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		ASSMANN WSW Components
Series		ABL
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Board Guide, Pick and Place
Connector Type		Header
Current Rating (Amps)		1A
Mounting Type		Surface Mount
Number of Positions		30
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Shape		Square
Insulation Height		0.094" (2.39mm)
Insulation Material		Polyamide (PA9T), Nylon 9T, Glass Filled
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		ABL-127-30-SR14

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
