AAA3MWZ _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	AAA3MWZ
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC2147-ND SC2147

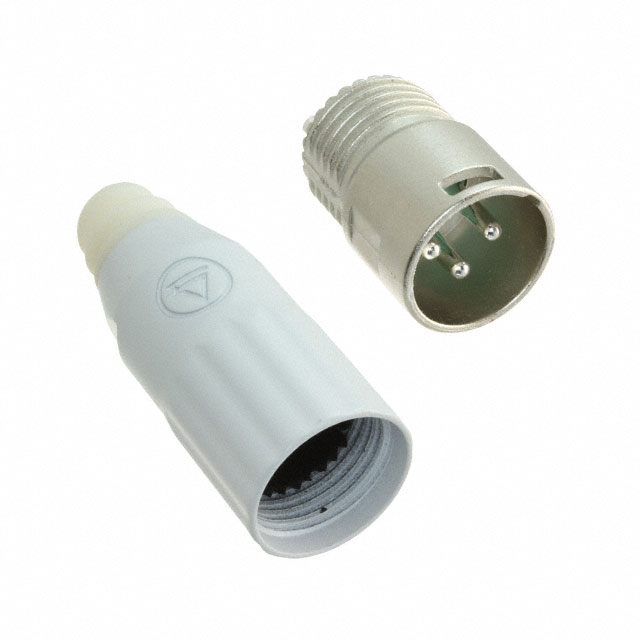

Description	CONN RCPT MALE XLR 3P SOLDER CUP
Detailed Description	3 Position Circular Connector Receptacle, Male Pins Solder Cup
Manufacturer Standard Lead Time	10 weeks

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Switchcraft / Conxall
Series		Q-G® AAA
Packaging		Bulk
Part Status		Active
Features		Backshell, Cable Clamp, Ground, Strain Relief
Connector Type		Receptacle, Male Pins
Color		White
Voltage Rating		125VAC
Current Rating (Amps)		15A
Mounting Type		Free Hanging (In-Line)
Shielding		Shielded
Number of Positions		3
Orientation		Keyed
Shell Size - Insert		XLR
Applications		Audio, Industrial, Instrumentation, Medical
Fastening Type		Latch Lock
Termination		Solder Cup
Cable Opening		0.100" ~ 0.220" (2.54mm ~ 5.59mm)
Contact Material		Copper Alloy
Contact Finish - Mating		Silver
Shell Material		Zinc Alloy
Shell Finish		Nickel
Insert Material		Thermoplastic
Backshell Material, Plating		Zinc Alloy, Nickel
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
