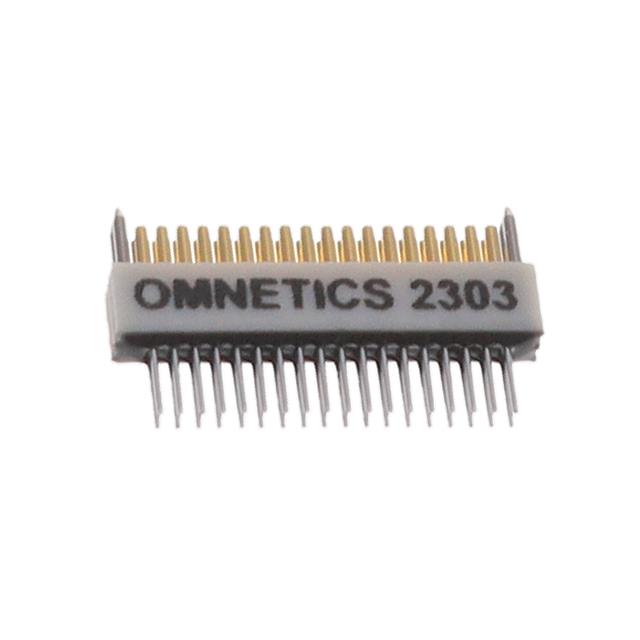

A79023-001 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	A79023-001
Manufacturer	Omnetics
Other Part Numbers	2262-A79023-001-ND 2262-A79023-001 NSD-36-DD-GS (4)
Description	NANO 36 SKT FEMALE PCB W/ 4 GUID
Detailed Description	36 Position Receptacle Connector 0.025" (0.64mm) Through Hole Gold
Manufacturer Standard Lead Time	10 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Omnetics
Series
Packaging		Case
Part Status		Active
Features		Guide Pin
Connector Type		Receptacle
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		36
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Contact Material		Copper Alloy
Insulation Color		Natural
Pitch - Mating		0.025" (0.64mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Gold
Contact Shape		Circular
Contact Length - Post		0.100" (2.54mm)
Insulation Height		0.100" (2.54mm)
Insulation Material		Thermoplastic
Row Spacing - Mating		0.030" (0.76mm)
Number of Rows		2

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
