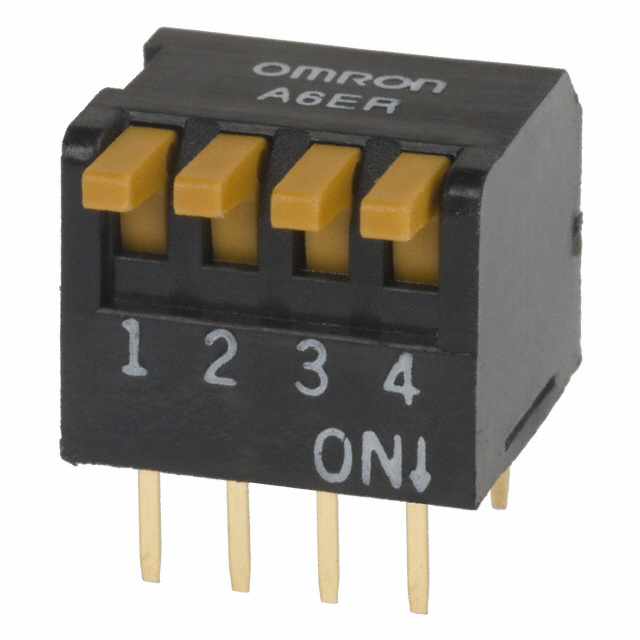

A6ER-3101

Part Number
A6ER-3101
Manufacturer Omron Electronic Components
Other Part Numbers
A6ER-3101-ND
A6ER3101
2266-A6ER-3101
Description SWITCH PIANO DIP SPST 0.025A 24V
Detailed Description Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
Datasheet Datasheet

Product Attributes

Category
Manufacturer Omron Electronic Components
Series
A6ER
Packaging
Tray
Part Status Obsolete
Features Sealed - Flux Protection
Contact Finish Gold
Voltage Rating 24VDC
Current Rating (Amps) 25mA
Mounting Type Through Hole, Right Angle
Pitch 0.100" (2.54mm), Full
Circuit SPST
Operating Temperature -20°C ~ 70°C
Termination Style PC Pin
Actuator Type Piano
Height Above Board 0.402" (10.20mm)
Actuator Level Flush, Recessed
Washable No
Number of Positions 3

Documents & Media

RESOURCE TYPE LINK
Datasheets A6ER-3101
Datasheets How to Read Date Codes
Datasheets A6ER-3101

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.50.9065
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
