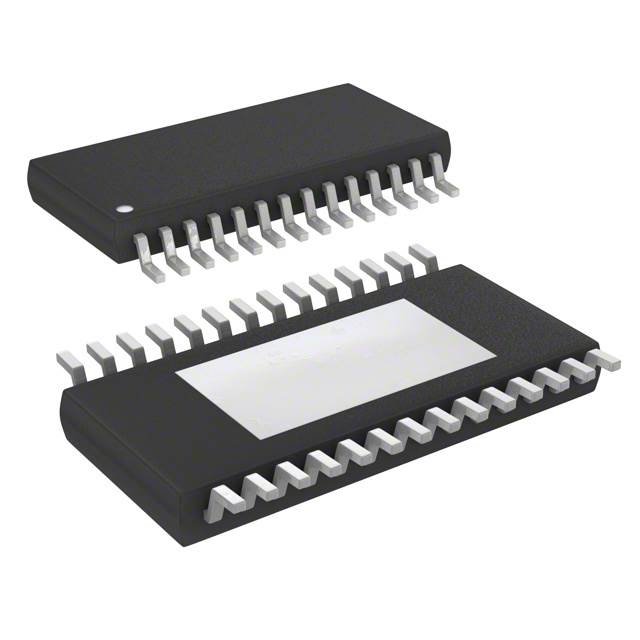

A3981KLPTR-T

Part Number
A3981KLPTR-T
Manufacturer Allegro MicroSystems
Other Part Numbers
620-1458-2-ND
620-1458-1-ND
620-1458-6-ND
A3981KLPTRT
ALLALLA3981KLPTR-T
620-1458-6
620-1458-2
620-1458-1
2156-A3981KLPTR-T
A3981KLPTR-T-ND
Description IC MTR DRV BIPOLR 3-5.5V 28TSSOP
Detailed Description Bipolar Motor Driver DMOS SPI, Step/Direction 28-TSSOP-EP
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allegro MicroSystems
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Function Driver - Fully Integrated, Control and Power Stage
Current - Output 1.4A
Interface SPI, Step/Direction
Operating Temperature -40°C ~ 150°C (TJ)
Output Configuration Half Bridge (4)
Voltage - Supply 3V ~ 5.5V
Technology DMOS
Voltage - Load 7V ~ 28V
Supplier Device Package 28-TSSOP-EP
Motor Type - Stepper Bipolar
Step Resolution 1, 1/2, 1/4, 1/16
Grade Automotive

Documents & Media

RESOURCE TYPE LINK
Datasheets Tape Change 27/Jan/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 6695

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
