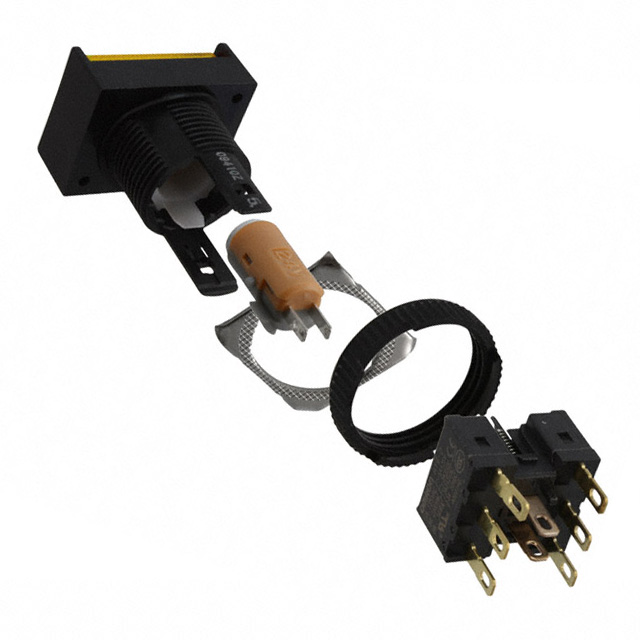

A16L-JYM-5D-1 _ Pushbutton Switches_Switches

Part Number	A16L-JYM-5D-1
Manufacturer	Omron Automation
Other Part Numbers	A16L-JYM-5D-1-ND A16LJYM5D1
Description	SWITCH PUSHBUTTON SPDT 5A 125V
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		Omron Automation
Series		A16
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		5A (AC)
Mounting Type		Panel Mount, Front
Circuit		SPDT
Type		Standard, Illuminated
Switch Function		On-Mom
Operating Temperature		-10°C ~ 55°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Yellow
Illumination Voltage (Nominal)		5 VDC
Actuator Type		Rectangular, Button
Ingress Protection		IP40
Panel Cutout Dimensions		Circular - 16.00mm Dia
Color - Actuator/Cap		Yellow
Actuator Marking		No Marking
Voltage Rating - AC		125 V

RESOURCE TYPE		LINK
Datasheets		Multiple Devices Nameplate May/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
