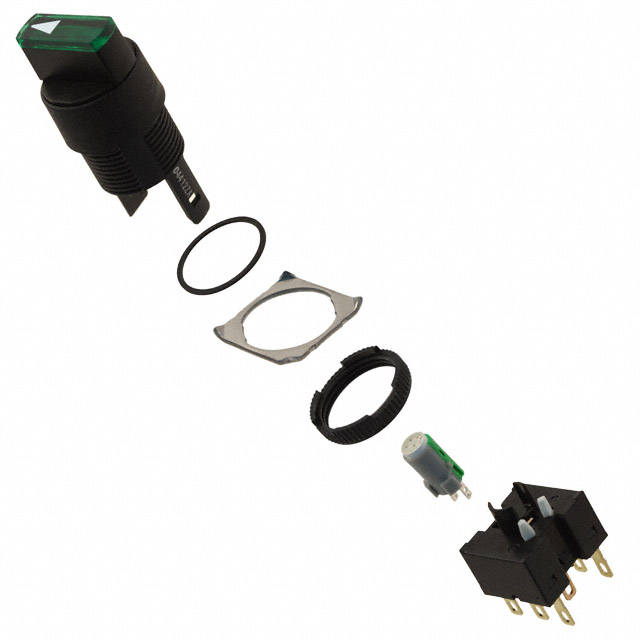

A165W-T3MG-24D-2 _ Selector Switches_Switches

Part Number	A165W-T3MG-24D-2
Manufacturer	Omron Automation
Other Part Numbers	Z1396-ND Z1396 A165WT3MG24D2
Description	SWITCH SELECT 3POS DPDT 5A 125V
Detailed Description	Selector Switch 3 Position DPDT 5A (AC), 3A (DC) 125 V Panel Mount
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Switches Selector Switches
Manufacturer		Omron Automation
Series		A165W
Packaging		Bulk
Part Status		Active
Features		Bezel - Round
Current Rating (Amps)		5A (AC), 3A (DC)
Mounting Type		Panel Mount
Circuit		DPDT
Type		Standard
Switch Function		On-On-On
Operating Temperature		-10°C ~ 55°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Green
Illumination Voltage (Nominal)		24 VDC
Illumination		Illuminated
Ingress Protection		IP65 - Dust Tight, Oil and Water Resistant
Panel Cutout Dimensions		Circular - 16.00mm Dia
Voltage Rating - AC		125 V
Voltage Rating - DC		30 V
Number of Positions		3

RESOURCE TYPE		LINK
Datasheets		A165W-T3MG-24D-2
Datasheets		Multiple Devices Nameplate May/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
