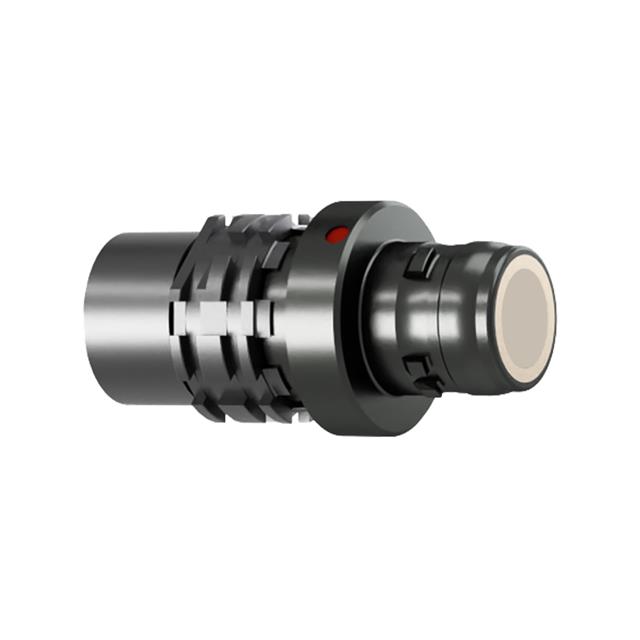

A10YAR-P07WDD0-R000 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	A10YAR-P07WDD0-R000
Manufacturer	ODU
Other Part Numbers	1907-A10YAR-P07WDD0-R000-ND 1907-A10YAR-P07WDD0-R000
Description	ODU AMC PLUG,BREAKAPART,EASY CLE
Detailed Description	7 Position Circular Connector Plug, Male Pins Solder Cup
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		ODU
Series		ODU AMC® Easy-Clean
Packaging		Bulk
Part Status		Active
Features		Backshell
Connector Type		Plug, Male Pins
Color		Silver
Voltage Rating		300V
Current Rating (Amps)		2A per Contact
Mounting Type		Free Hanging (In-Line)
Shielding		Shielded
Number of Positions		7
Orientation		A
Shell Size - Insert		0
Operating Temperature		-51°C ~ 125°C
Applications		Industrial, Medical, Military
Fastening Type		Push-Pull
Termination		Solder Cup
Ingress Protection		IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Cable Opening		0.217" (5.50mm)
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		50.0µin (1.27µm)
Shell Material		Aluminum
Shell Finish		Ruthenium over Electroless Nickel
Insert Material		Polyetheretherketone (PEEK)
Backshell Material, Plating		Aluminum, Ruthenium over Electroless Nickel
Primary Material		Metal

RESOURCE TYPE		LINK
Datasheets		A10YAR-P07WDD0-R000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
