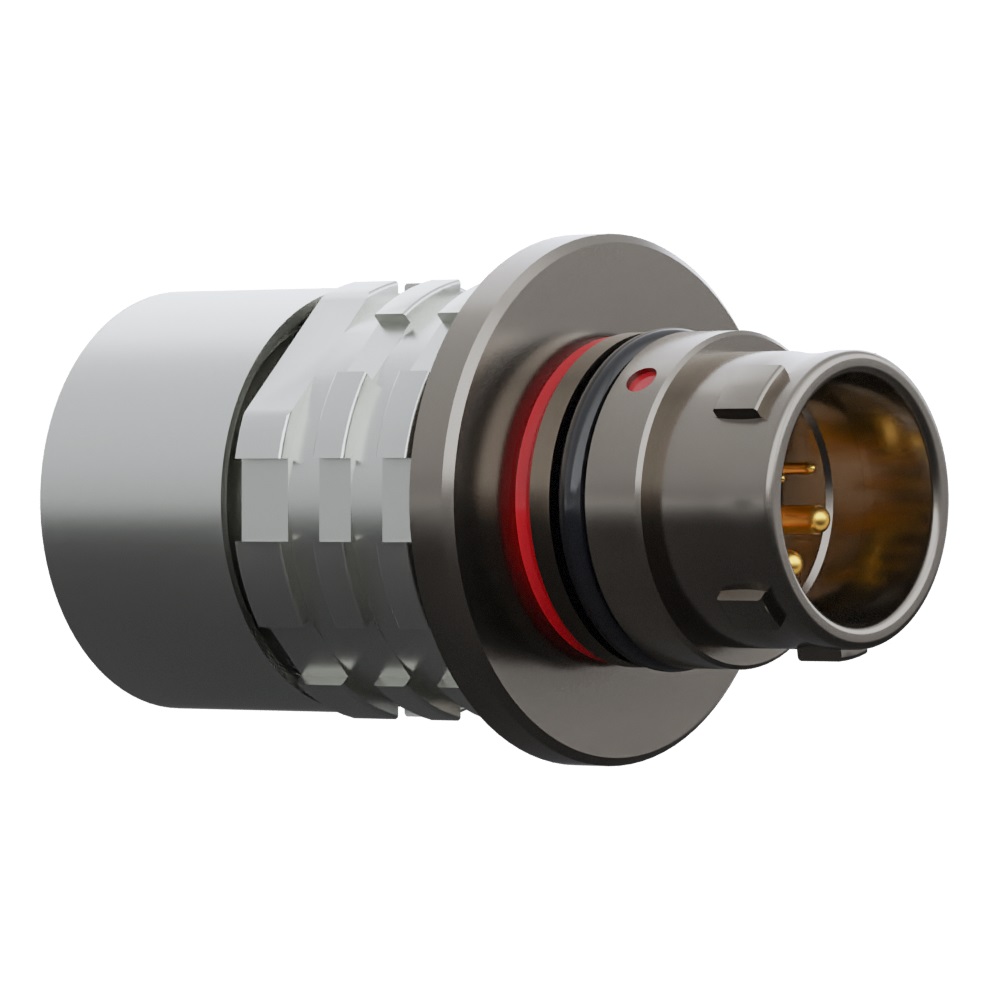

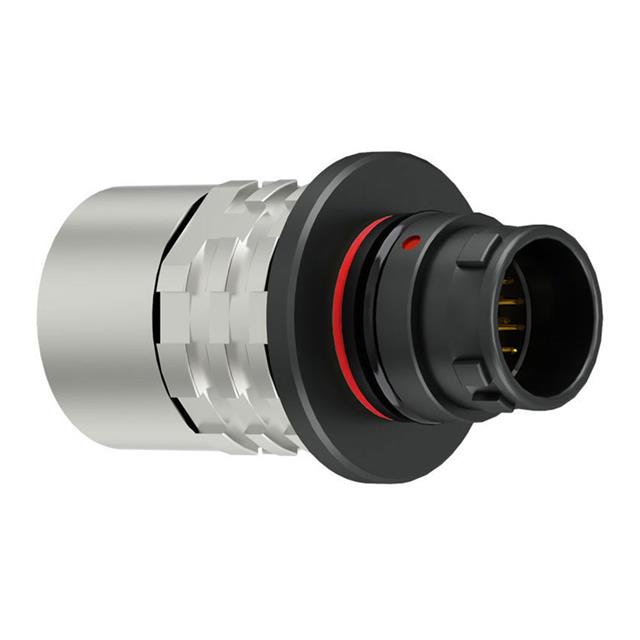

A10WBM-P16XBC0-0000 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	A10WBM-P16XBC0-0000
Manufacturer	ODU
Other Part Numbers	1907-A10WBM-P16XBC0-0000-ND 1907-A10WBM-P16XBC0-0000
Description	ODU AMC HD PLUG, STY 1, SZ 0, SE
Detailed Description	16 Position Circular Connector Plug, Male Pins Solder Cup
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		ODU
Series		ODU AMC® High-Density
Packaging		Bulk
Part Status		Active
Features		Backshell
Connector Type		Plug, Male Pins
Color		Black, Silver
Current Rating (Amps)		1A
Mounting Type		Free Hanging (In-Line)
Shielding		Shielded
Number of Positions		16
Orientation		B
Shell Size - Insert		0
Operating Temperature		-51°C ~ 125°C
Applications		Industrial, Medical, Military
Fastening Type		Push-Pull, Detent Lock
Termination		Solder Cup
Ingress Protection		IP68 - Dust Tight, Waterproof
Cable Opening		0.276" (7.00mm)
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		50.0µin (1.27µm)
Shell Material		Brass
Shell Finish		Ruthenium over Electroless Nickel
Insert Material		Polyetheretherketone (PEEK)
Backshell Material, Plating		Brass, Ruthenium over Electroless Nickel
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
