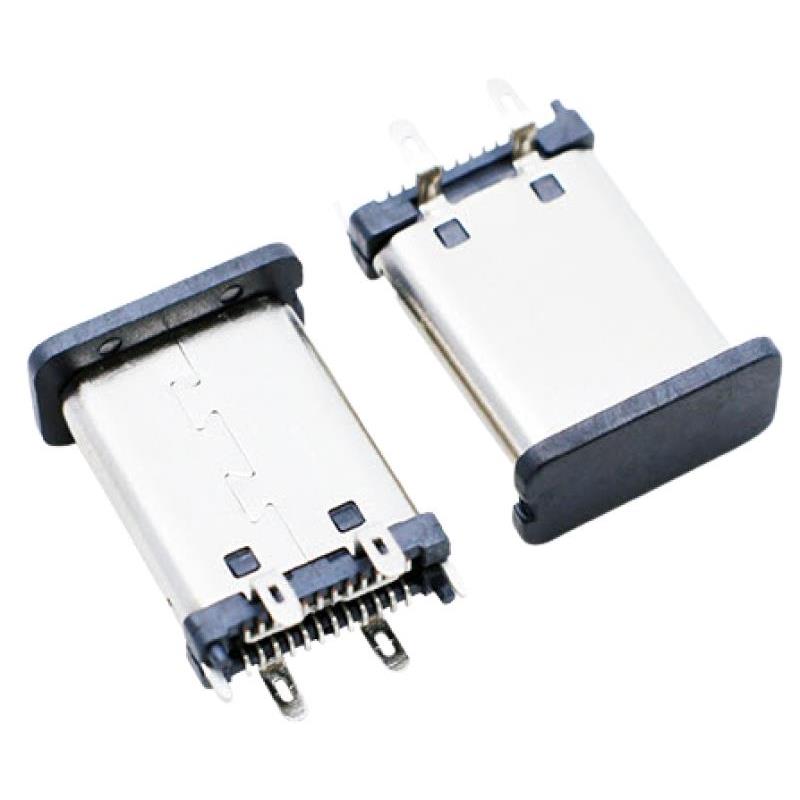

A-USBC-32F1-EG-HSR08 _ USB, DVI, HDMI Connector Assemblies_USB, DVI, HDMI Connectors_Connectors, Interconnects

Part Number	A-USBC-32F1-EG-HSR08
Manufacturer	ASSMANN WSW Components
Other Part Numbers	123-A-USBC-32F1-EG-HSR08TR-ND 123-A-USBC-32F1-EG-HSR08TR
Description	USB TYPE C, USB 3.2 GEN1, FEMALE
Detailed Description	USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Through Hole
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		ASSMANN WSW Components
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Number of Contacts		24
Connector Type		USB-C (USB TYPE-C)
Gender		Plug
Contact Finish		Gold
Current Rating (Amps)		5A
Mounting Type		Through Hole
Shielding		Shielded
Operating Temperature		-30°C ~ 85°C
Specifications		USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination		Solder
Material Flammability Rating		UL94 V-0
Mounting Feature		Vertical
Mating Cycles		10000
Insulation Color		Black
Shell/Shielding Material		Steel (SUS304)
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		A-USBC-32F1-EG-HSR08

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
