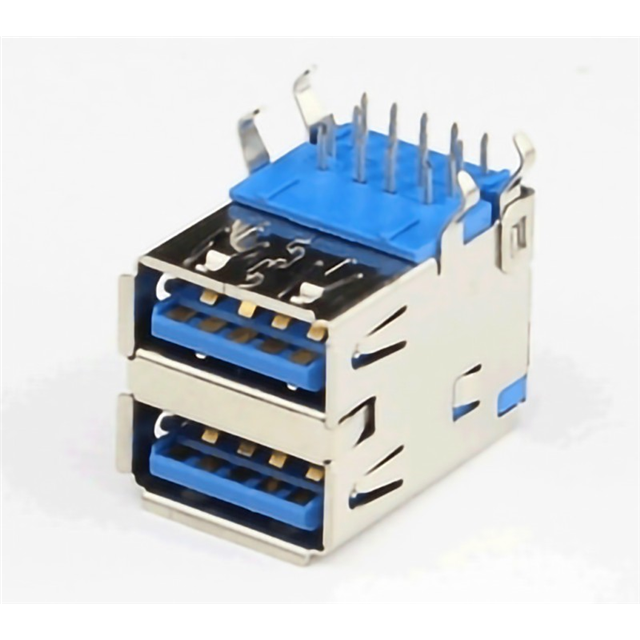

A-USB3 A-2P

A-USB3 A-2P

Part Number	A-USB3 A-2P
Manufacturer	ASSMANN WSW Components
Other Part Numbers	123-A-USB3A-2P-ND 123-A-USB3A-2P
Description	CONN RCPT USB3.2 TYPEA STACK R/A
Detailed Description	USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Through Hole, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		ASSMANN WSW Components
Series
Packaging		Tray
Part Status		Active
Voltage - Rated		30VAC/DC
Number of Contacts		18
Connector Type		USB-A (USB TYPE-A), Stacked
Gender		Receptacle
Current Rating (Amps)		0.25A, 1.8A
Mounting Type		Through Hole, Right Angle
Shielding		Shielded
Operating Temperature		-20°C ~ 85°C
Specifications		USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Termination		Solder
Mounting Feature		Horizontal
Mating Cycles		5000
Number of Ports		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		A-USB3 A-2P

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3310

Can ship immediately.
