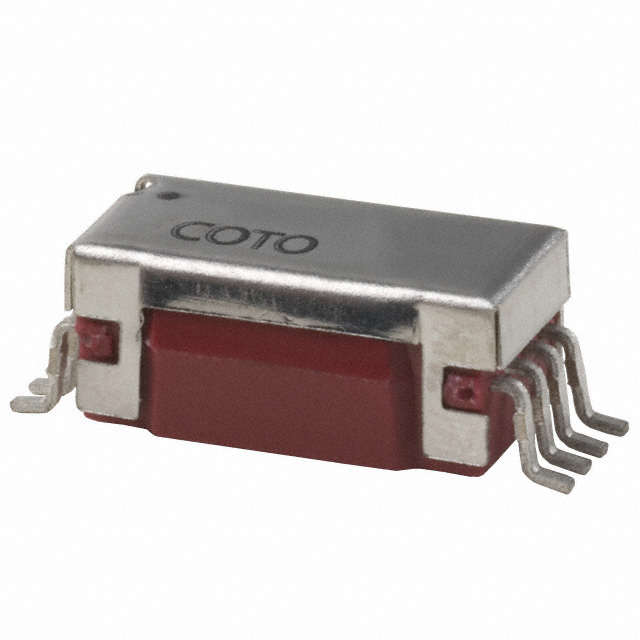

9814-03-00 _ High Frequency (RF) Relays_Relays

Part Number	9814-03-00
Manufacturer	Coto Technology
Other Part Numbers	306-1156-5-ND 9814-3-0 98140300 306-1156-5
Description	RELAY RF SPST-NO 250MA 3.3V
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Relays High Frequency (RF) Relays
Manufacturer		Coto Technology
Series		9800
Packaging		Tube
Part Status		Active
Features		Magnetic Shield
Mounting Type		Surface Mount
Coil Voltage		3.3VDC
Operating Temperature		-20°C ~ 85°C
Termination Style		Gull Wing
Coil Current		47.1 mA
Coil Type		Non Latching
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		250 mA
Switching Voltage		100VAC, 100VDC - Max
Must Release Voltage		0.4 VDC
Must Operate Voltage		2.5 VDC
Operate Time		0.25 ms
Release Time		0.05 ms
Coil Resistance		70 Ohms

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0030
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
