9578100502

9578100502

Part Number	9578100502
Manufacturer	Fair-Rite Products Corp.
Other Part Numbers	1934-9578100502-ND 9578100502-ND 1934-9578100502

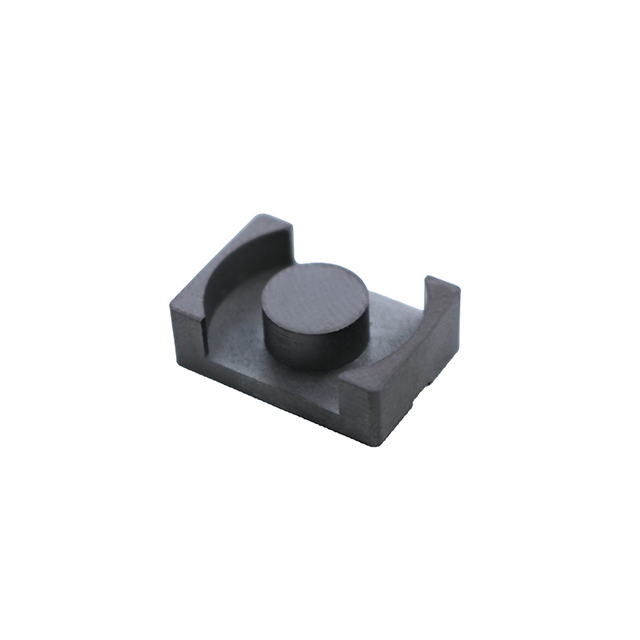

Description	FERRITE CORE E 78 SET
Detailed Description	Uncoated 78 Ferrite Core E Type 0.368" (9.35mm) Length Width Diameter Height
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Magnetics - Transformer, Inductor Components Ferrite Cores
Manufacturer		Fair-Rite Products Corp.
Series
Packaging		Bulk
Part Status		Active
Tolerance		±25%
Material		78
Length		0.368" (9.35mm)
Core Type		E
Initial Permeability (µi)		2300
Finish		Uncoated
Gap		Ungapped
Core Factor (ΣI/A) mm⁻¹		152
Effective Length (le) mm		13.6
Effective Area (Ae) mm²		8.93
Minimum Core Cross Section (Amin) mm²		7.6
Effective Magnetic Volume (Ve) mm³		122

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Fair-Rite REACH
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.90.9630
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1303

Can ship immediately.
