Part Number	9478101002
Manufacturer	Fair-Rite Products Corp.
Other Part Numbers	9478101002-ND

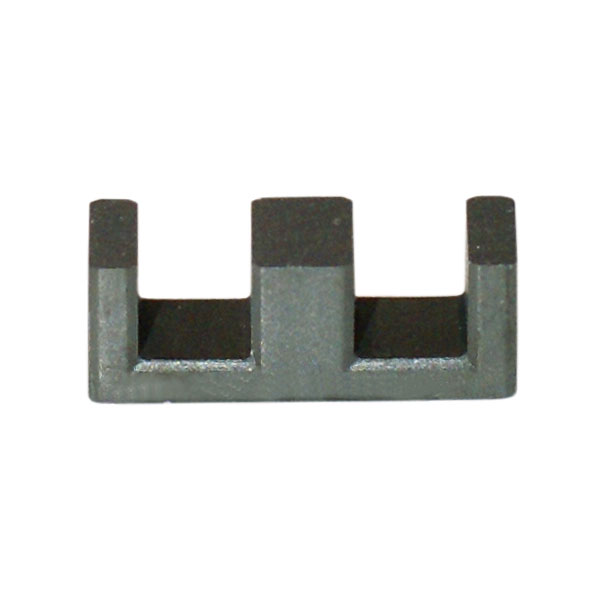

Description	FERRITE CORE E 78 SET
Detailed Description	Uncoated 78 Ferrite Core E Type Length 0.177" (4.50mm) Width Diameter 0.317" (8.05mm) Height
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Magnetics - Transformer, Inductor Components Ferrite Cores
Manufacturer		Fair-Rite Products Corp.
Series
Packaging		Bulk
Part Status		Active
Tolerance		±25%
Material		78
Width		0.177" (4.50mm)
Height		0.317" (8.05mm)
Core Type		E
Initial Permeability (µi)		2300
Finish		Uncoated
Gap		Ungapped
Core Factor (ΣI/A) mm⁻¹		193
Effective Length (le) mm		37.7
Effective Area (Ae) mm²		19.6
Minimum Core Cross Section (Amin) mm²		18.9
Effective Magnetic Volume (Ve) mm³		739

Documents & Media

RESOURCE TYPE		LINK
Datasheets		9478101002
Datasheets		RoHS Cert
Datasheets		Fair-Rite REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.90.9630
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
