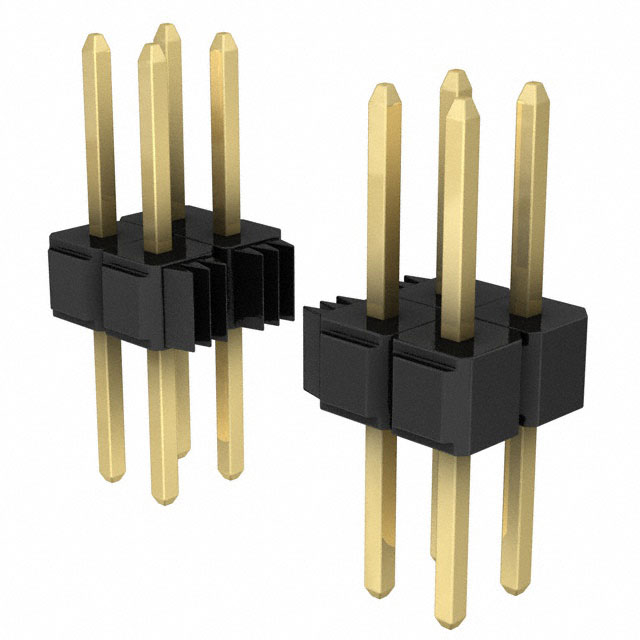

929665-02-31-I _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	929665-02-31-I
Manufacturer	3M
Other Part Numbers	3M156308-62-ND 929665-02-31 3M156308-62 80-0013-4355-9 80001343559 929665-02-31-ND
Description	CONN HEADER VERT 62POS 2.54MM
Detailed Description	Connector Header Through Hole 62 position 0.100" (2.54mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		3M
Series		929
Packaging		Bulk
Part Status		Active
Connector Type		Header
Current Rating (Amps)		2.5A
Mounting Type		Through Hole
Number of Positions		62
Number of Rows		2
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		10.0µin (0.25µm)
Contact Shape		Square
Contact Length - Post		0.210" (5.33mm)
Insulation Height		0.100" (2.54mm)
Shrouding		Unshrouded
Overall Contact Length		0.545" (13.84mm)
Insulation Material		Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.235" (5.97mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
