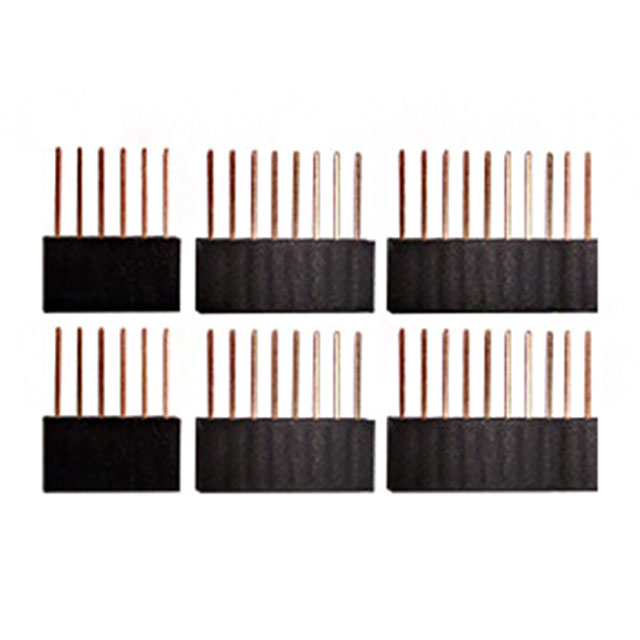

920-0088-01 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	920-0088-01
Manufacturer	SchmartBoard
Other Part Numbers	1988-1036-ND 1988-1036
Description	CONN HDR 8/10P 0.1 GOLD PCB 6PC
Detailed Description	6, 8, 10 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		SchmartBoard
Series
Packaging		Bulk
Part Status		Active
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		6, 8, 10
Style		Board to Board
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Gold
Contact Shape		Square
Contact Length - Post		0.413" (10.50mm)
Insulation Height		0.335" (8.51mm)
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		920-0088-01

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.
