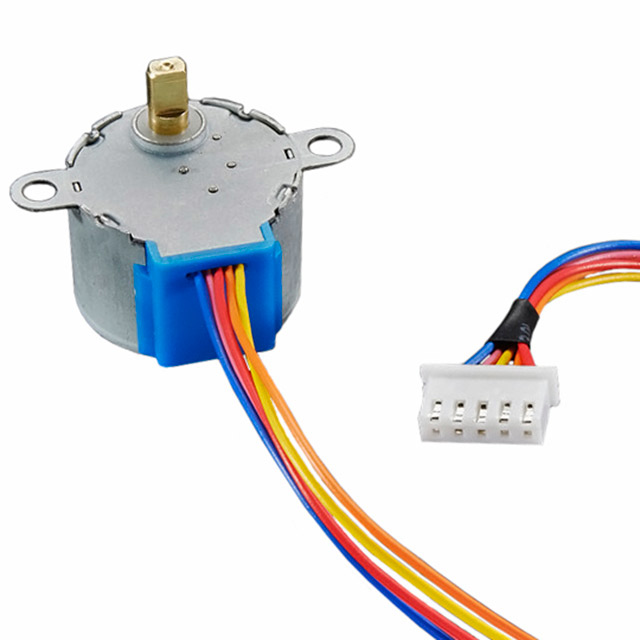

918 _ Stepper Motors_Motors, Actuators, Solenoids and Drivers_

+86-0755-8325-4547

918

918

Part Number	918
Manufacturer	Adafruit
Other Part Numbers	1528-1367-ND 1528-1367
Description	STEPPER MOTOR PM GEARED UNI 12V
Detailed Description	Unipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 513.0 Step 12VDC
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Motors, Actuators, Solenoids and Drivers Stepper Motors
Manufacturer		Adafruit
Series
Packaging		Bulk
Part Status		Active
Features		Flatted Shaft
Voltage - Rated		12VDC
Size / Dimension		Round - 1.100" Dia (28.00mm)
Type		Permanent Magnet Gear Motor
Weight		0.082 lb (37.19 g)
Termination Style		Wire Leads with Connector
Step Angle		11.25°
Torque - Holding (oz-in / mNm)		3.5 / 25
Coil Type		Unipolar
Diameter - Shaft		0.197" (5.00mm)
Mounting Hole Spacing		1.378" (35.00mm)
Length - Shaft and Bearing		0.394" (10.00mm)
Coil Resistance		42 Ohms
Steps per Revolution		513

Documents & Media

RESOURCE TYPE		LINK
Datasheets		918

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8501.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 94

Can ship immediately.
