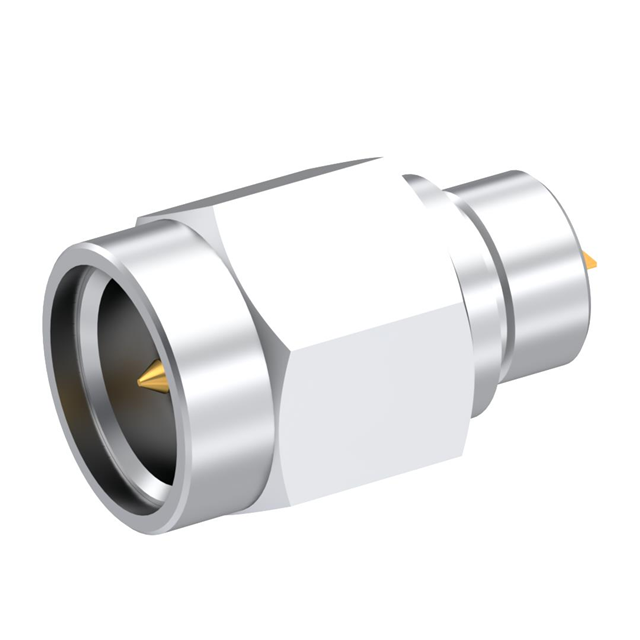

9139-9113-000 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	9139-9113-000
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-9139-9113-000-ND 2201-9139-9113-000
Description	SMA / STRAIGHT PLUG RECEPTACLE M
Detailed Description	SMA Connector Plug, Male Pin 50 Ohms Through Hole Solder Tab
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder Tab
Impedance		50 Ohms
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.44dB
Fastening Type		Threaded
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Stainless Steel
Housing Color		Silver
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Center Contact Plating		Gold
Frequency - Max		18 GHz
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		9139-9113-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
