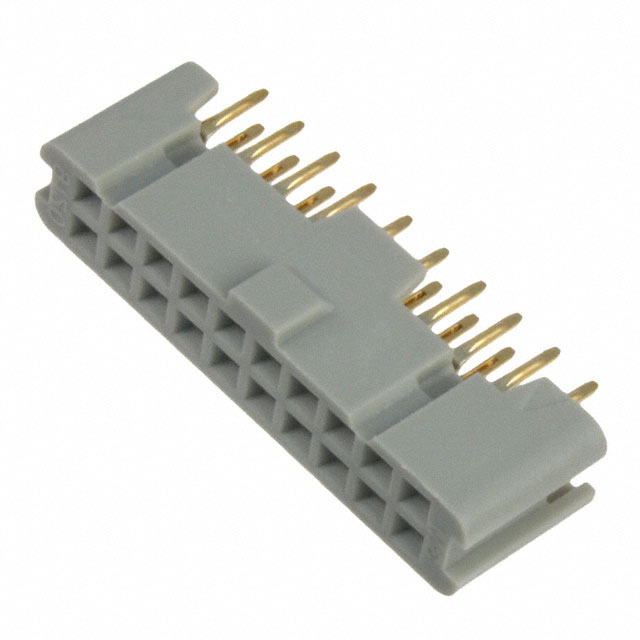

9120-4500PL _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	9120-4500PL
Manufacturer	3M
Other Part Numbers	3M155853-ND 05111173227 3M155853 91204500PL -9120-4500PL 4547452262953 JE150318838 54745226295 9120-4500PL-ND 7000090291
Description	CONN RCPT 20POS 0.1 GOLD PCB
Detailed Description	20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		3M
Series		9100
Packaging		Bulk
Part Status		Active
Features		Polarizing Key
Connector Type		Receptacle
Voltage Rating		1000V
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		20
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Kinked Pin, Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Gray
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		12.0µin (0.30µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.110" (2.79mm)
Insulation Height		0.354" (9.00mm)
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Number of Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
