Part Number |
902-0098-000
|
---|---|
Manufacturer | ROBOTIS |
Other Part Numbers |
2700-902-0098-000-ND
2700-902-0098-000
|

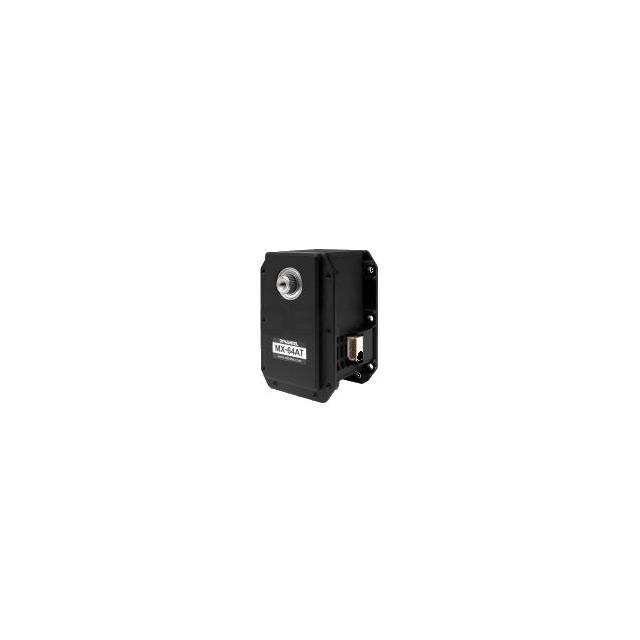

Description | MX-64AT DYNAMIXEL SERVO |
Detailed Description | Brushed DC Motor Servomotor 63 RPM Absolute 12VDC |
Category | ||
---|---|---|
Manufacturer | ROBOTIS | |
Series |
DYNAMIXEL-MX
|
|
Packaging |
Box
|
|
Part Status | Active | |
Features | Integrated Controller | |
Voltage - Rated | 12VDC | |
Size / Dimension | Rectangular - 2.405" x 1.582" (61.10mm x 40.20mm) | |
Function | Servomotor | |
RPM | 63 RPM | |
Type | DC Motor | |
Weight | 0.364 lb (165 g) | |
Operating Temperature | -5°C ~ 80°C | |
Termination Style | Connector | |
Encoder Type | Absolute | |
Gear Reduction Ratio | 200 | |
Motor Type | Brushed | |
Torque - Max Momentary (oz-in / mNm) | 849.8 / 6000 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8479.90.9530 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | ROHS3 Compliant |
