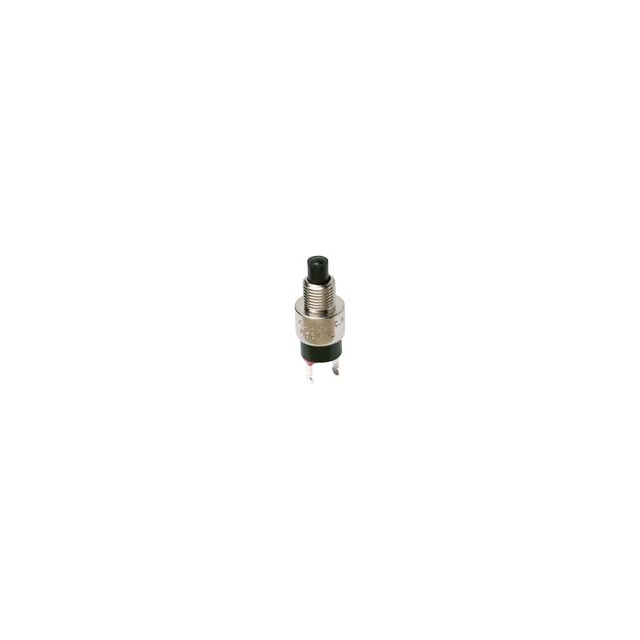

8532SAVBE2

8532SAVBE2

Part Number	8532SAVBE2
Manufacturer	Littelfuse / C&K
Other Part Numbers	8532SAVBE2-ND -8532SAVBE2 Q1150614A *8532SAVBE2
Description	SWITCH PUSH SPST-NO 0.4VA 20V
Detailed Description	Pushbutton Switch SPST-NO Standard Panel Mount, Right Angle, Vertical, Rear
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Littelfuse / C&K
Series		8500
Packaging		Tray
Part Status		Active
Features		Epoxy Sealed Terminals
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Right Angle, Vertical, Rear
Circuit		SPST-NO
Type		Standard
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 65°C
Termination Style		PC Pin
Actuator Type		Round, Plunger
Panel Cutout Dimensions		Circular - 6.35mm Dia
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - AC		20 V
Voltage Rating - DC		20 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		8532SAVBE2
Datasheets		Multiple Devices Location 04/Sep/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
