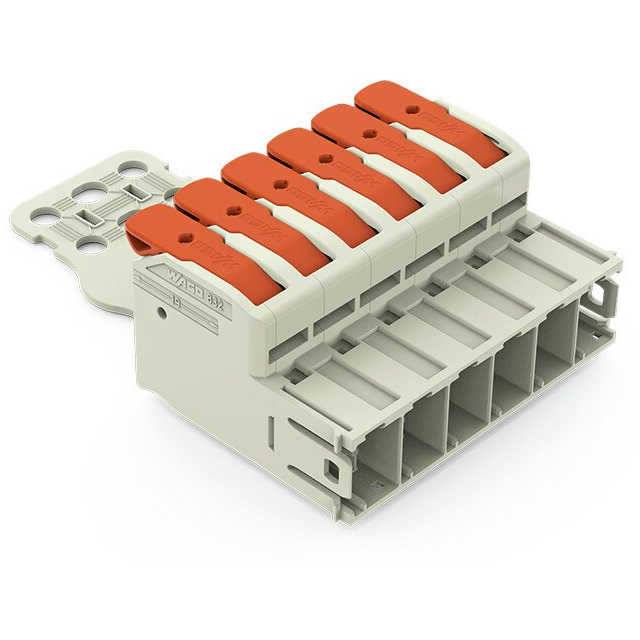

832-1206/334-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	832-1206/334-000
Manufacturer	WAGO
Other Part Numbers	2946-832-1206/334-000-ND 60418596 0832-1206/334-000 2946-832-1206/334-000 08321206/334000 0832-1206/0334-0000 8321206/334000 2943-832-1206/334-000 2943-832-1206/334-000-ND
Description	1-CONDUCTOR MALE CONNECTOR 100%
Detailed Description	6 Position Terminal Block Plug, Male Pins 0.400" (10.16mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMAXI 16
Packaging		Box
Part Status		Active
Features		Strain Relief
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		6
Pitch		0.400" (10.16mm)
Type		Plug, Male Pins
Operating Temperature		-60°C ~ 120°C
Termination Style		Screwless - Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		76A
Number of Levels		1
Wire Gauge or Range - AWG		4-18 AWG
Wire Gauge or Range - mm²		0.75-16mm²
Positions Per Level		6
Contact Material		Electrolytic Copper
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Silver
Wire Strip Length		18-20mm
Insulation Height		1.146" (29.10mm)
Current - UL		85 A
Voltage - IEC		1 kV
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
