820B003-173L401

Part Number
820B003-173L401
Manufacturer NorComp
Other Part Numbers
NOR1475-ND
NOR1475

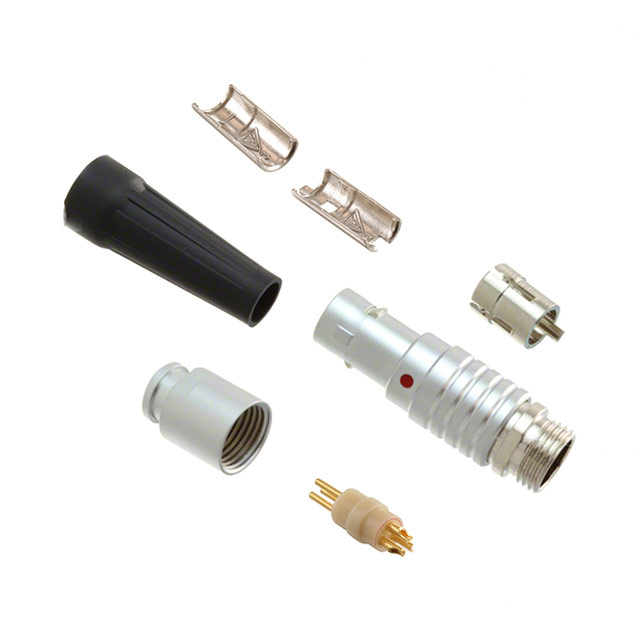

Description CONN PLUG MALE 3P GOLD SLDR CUP
Detailed Description 3 Position Circular Connector Plug, Male Pins Solder Cup
Manufacturer Standard Lead Time 24 weeks

Product Attributes

Category
Manufacturer NorComp
Series
QUIK-LOQ™ 820B
Packaging
Tray
Part Status Active
Features Backshell, Strain Relief
Connector Type Plug, Male Pins
Color Black, Silver
Voltage Rating 400V
Current Rating (Amps) 8A
Mounting Type Free Hanging (In-Line)
Shielding Shielded
Number of Positions 3
Orientation Keyed
Operating Temperature -40°C ~ 200°C
Applications Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Fastening Type Push-Pull
Termination Solder Cup
Ingress Protection IP50 - Dust Protected
Cable Opening 0.130" ~ 0.165" (3.30mm ~ 4.20mm)
Contact Material Copper Alloy
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 7.00µin (0.178µm)
Shell Material Brass
Shell Finish Nickel
Insert Material Polyphenylene Sulfide (PPS)
Backshell Material, Plating Brass, Chrome
Primary Material Metal

Documents & Media

RESOURCE TYPE LINK
Datasheets 820B003-173L401

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4020
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
