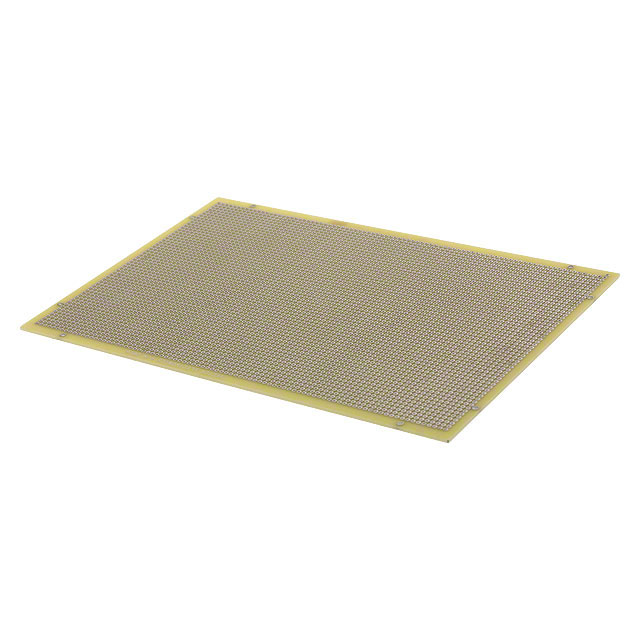

8016

8016

Part Number	8016
Manufacturer	Vector Electronics & Technology, Inc.
Other Part Numbers	V2011-ND V2011
Description	BREADBOARD GENERAL PURPOSE PTH
Detailed Description	Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Product Attributes

Category		Prototyping, Fabrication Products Prototype Boards Perforated
Manufacturer		Vector Electronics & Technology, Inc.
Series		Vectorbord® Circbord™
Packaging		Bulk
Part Status		Active
Size / Dimension		9.00" L x 6.00" W (228.6mm x 152.4mm)
Pitch		0.100" (2.54mm)
Board Thickness		0.062" (1.57mm) 1/16"
Proto Board Type		Breadboard, General Purpose
Hole Diameter		0.042" (1.07mm)
Circuit Pattern		Pad Per Hole (Round)
Plating		Plated Through Hole (PTH)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		8016
Datasheets		8015; 16; 17; 20
Datasheets		8016 Layout Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.8585
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 233

Can ship immediately.
